Professional, efficient, and fast schedule
+Split design, tailor-made;
+Small space, easy to navigate;
+Installation and disassembly require no external force+ Intelligent control, one click direct access;

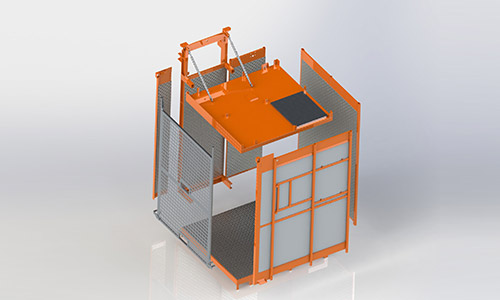

Tailored to fit, with a split cage design; Small space, easy to assemble and disassemble. Smooth start-up and braking, quick transition; One investment, repeated use.

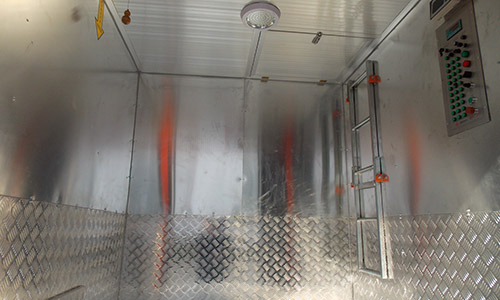

Enclosed space enhances a sense of security; Large space inside the cage and fast operating speed; Advance construction can be carried out to shorten the construction period.

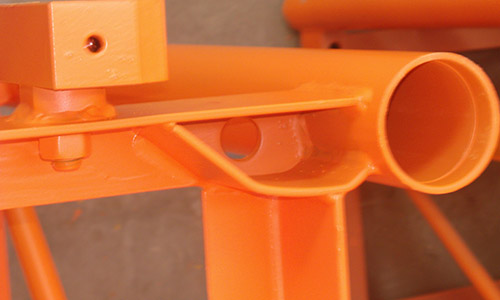

The main components undergo shot blasting treatment after welding to remove rust and oxide layers, harden the metal surface, eliminate welding stress, improve paint adhesion, and use more environmentally friendly advanced processes for painting. The normal protective effect can reach more than 10 years.

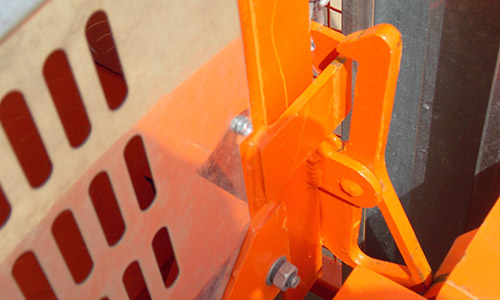

Based on the application experience of domestic construction elevators, the industry's unique standard section connection bolt anti reverse safety design can effectively avoid major equipment accidents
The operation is more convenient and simple, using frequency conversion control and equipped with automatic leveling and other functions.
Support remote monitoring system, effectively connect with the site, and implement real-time monitoring of its operating conditions; Proactively providing customers with remote fault analysis and solutions to prevent various hidden dangers during elevator operation; Enhance auxiliary functions such as equipment management, energy conservation, and consumption reduction; Support operating system upgrades.
| type & nbsp; Number | SC100 | SC100 |
|---|---|---|
| Rated load capacity (Kg) | 1000 | |
| Motor power (Kw) | 2 × 15 | 2 × 11 |
| Working speed (m/min) | -60 | -45 |
| Maximum lifting height (m) | 300 | |
| Cage size (m) | 1800 × 1750 × 2200 | 1800 × 1750 × 2200 |
| Standard section size (mm) | 650 × 300 × 1508 | 650 × 300 × 1508 |
| Attachment frame installation interval (m/track) | 4.5 | 4.5 |
