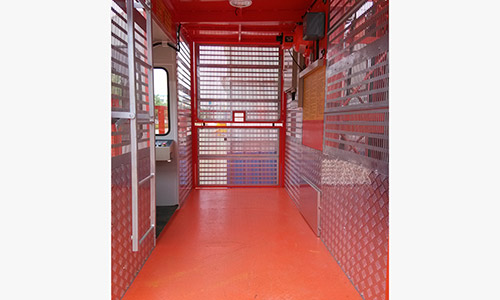

+Large space inside the cage;
+Good interchangeability performance;
+More effective protection;
+More outstanding performance;

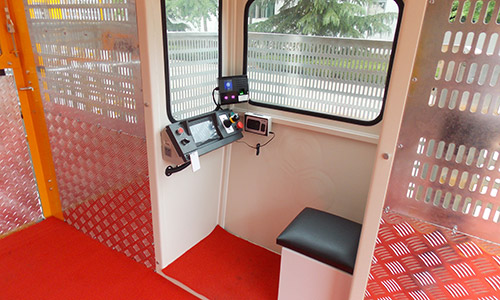

Maintain the climbing ladder, which can be retracted in working condition, does not occupy the space inside the cage, and is not easily lost; The control system adopts a semi embedded design to maximize the space inside the cage.

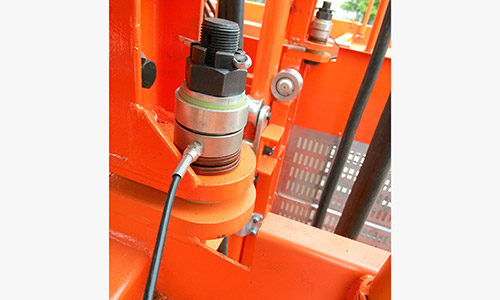

The connection between the suspension cage and the driving device has added a flexible structural form, with a safety factor of more than 20 times, allowing users to feel more at ease.

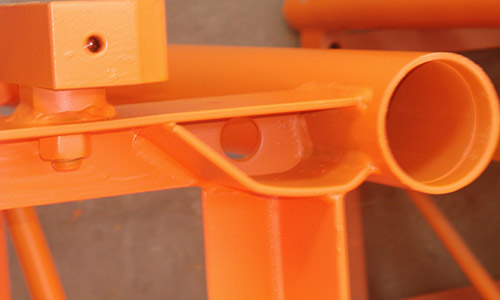

The main components undergo shot blasting treatment after welding to remove rust and oxide layers, harden the metal surface, eliminate welding stress, improve paint adhesion, and use more environmentally friendly advanced processes for painting. The normal protective effect can reach more than 10 years.

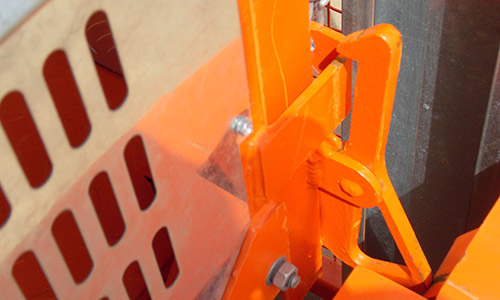

Based on the application experience of domestic construction elevators, the industry's unique standard section connection bolt anti reverse safety design can effectively avoid major equipment accidents.
The operating system adopts frequency conversion control, which enhances the adaptability of the elevator on site, reduces the starting current, and has no impact on surrounding equipment; There are floor call devices, automatic leveling functions, automatic lubrication devices, facial and fingerprint recognition systems, electric flap doors, and more auxiliary functions available for users to choose from.

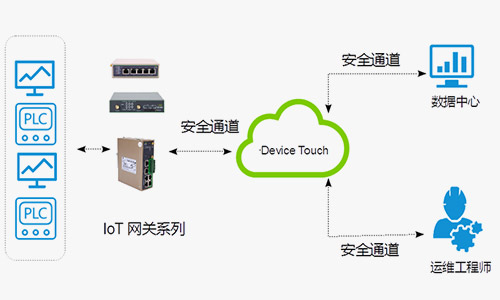

Support remote monitoring system, effectively connect with the site, and implement real-time monitoring of its operating conditions; Proactively providing customers with remote fault analysis and solutions to prevent various hidden dangers during elevator operation; Enhance auxiliary functions such as equipment management, energy conservation, and consumption reduction; Support operating system upgrades.
model | SC200/200 | SC200/200 | SC200/200 | SC200/200 | SC200/200 |
---|---|---|---|---|---|
Rated load capacity (Kg) | 2000/2000 | 2000/2000 | 2000/2000 | 2000/2000 | 2000/2000 |
Motor power (Kw) | 3×11/3×11 | 2×15/2×15 | 3×11/3×11 | 3×15/3×15 | 3×18.5/3×18.5 |
Working speed (m/min) | thirty-three | 0-40 | 0-45 | 0-55 | 0-66 |
Maximum lifting height (m) | two hundred | three hundred | three hundred | three hundred | three hundred |
Cage size (m) | 3.2×1.5×2.2 | 3.2×1.5×2.2 | 3.2×1.5×2.2 | 3.2×1.5×2.2 | 3.2×1.5×2.2 |
Standard section size (mm) | 650×650×1508 | 650×650×1508 | 650×650×1508 | 650×650×1508 | 650×650×1508 |
Distance between the center of the guide rail bracket and the wall (mm) | 2800~3200 | 2800~3200 | 2800~3200 | 2800~3200 | 2800~3200 |
Installation interval of attachment frame (m/track) | 6~9 | 6~9 | 6~9 | 6~9 | 6~9 |
