1. The flat head tower crane has a quick and convenient segmented installation of the lifting arm and balance arm, and can also change the arm in the air;
2. The standard section of the tower body adopts the L69 type sheet mounted structure design and is equipped with an inclined ladder;
3. The lifting arm can achieve multiple arm length combinations according to user requirements;
4. The lifting, slewing, and amplitude are all controlled by frequency conversion. The lifting mechanism has zero servo anti fall function, and the slewing mechanism has anti sway function.
5. The product components have strong universality with PT7528 tower crane.

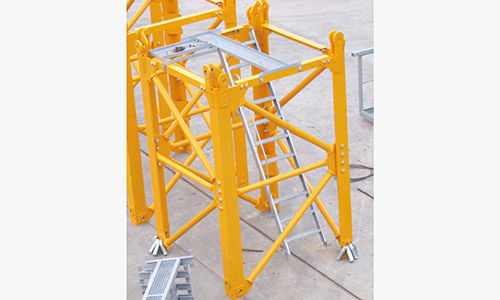

The standard section is designed with inclined ladders and platforms, making it easy to climb up and down the tower crane, and providing ample space for installation and disassembly.
The standard fishplate has a stop and retreat positioning plate between the main pin shaft and the auxiliary pin shaft.

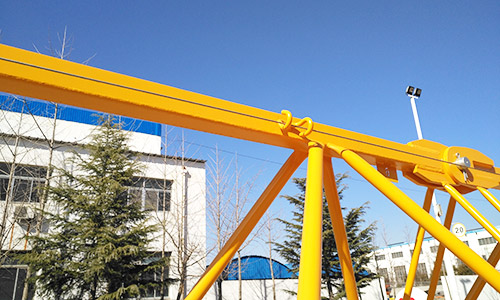

The crane arm is designed with safety hooks and safety ropes to increase safety.

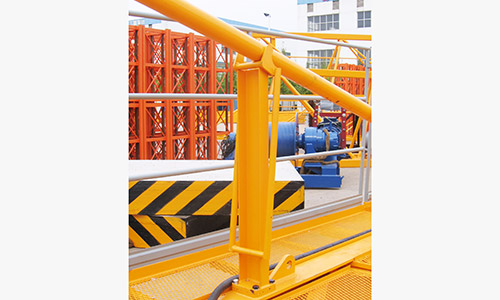

There are various installation brackets designed for quick, safe, and effortless installation.

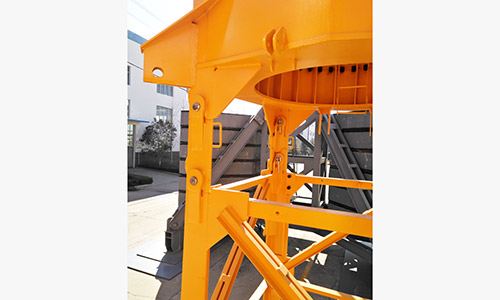

The lower turntable is designed as an octagonal structure, and the force on the turntable is balanced when the tower crane rotates.
| name | Company | parameter | ||||||
|---|---|---|---|---|---|---|---|---|
| Rated lifting torque | kN.m | two thousand and five hundred | ||||||
| Maximum lifting capacity | t | sixteen | ||||||
| Work range | m | 3.5～70 | ||||||
| Lifting capacity at maximum working range | t | three point two | ||||||
| Lifting height | m | Magnification ratio | Independent style | Adhesive type | ||||
| two | sixty | two hundred | ||||||
| four | sixty | one hundred | ||||||
| Lifting performance | Magnification ratio |
|
two | four | ||||
| Lifting speed | m/min | 0~94 | 0~47 | 0~47 | 0~28 | |||
| Lifting capacity | t | four | eight | eight | sixteen | |||
| Rotation speed | r/min | 0～0.7 | ||||||
| derricking speed | m/min | 0~60 | ||||||
| Lifting speed | m/min | zero point four five | ||||||
| Sectional dimensions of tower body | m | 2.0×2.0 | ||||||
| Balance weight | t | twenty-five | ||||||
| working temperature | ℃ | -20～+40 | ||||||
| Whole machine power | kW | 97.5 (excluding lifting motor) | ||||||
