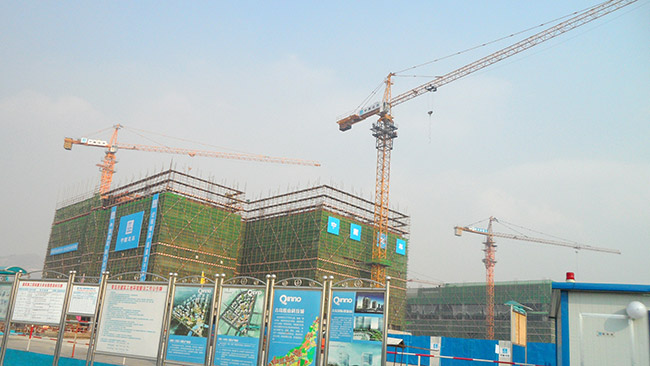

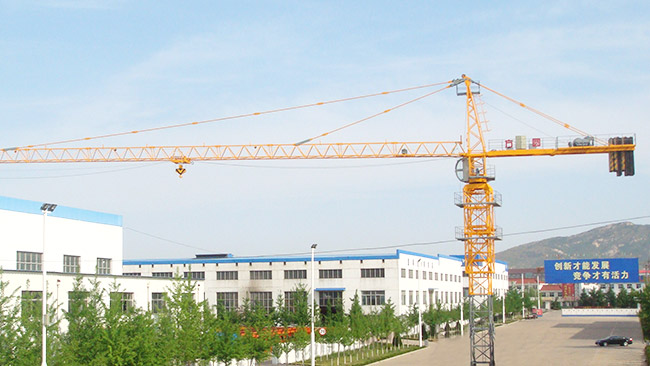

1. The maximum independent lifting height is 50 meters, the maximum lifting weight is 10 tons, and the standard section can adopt a square tube main limb integral structure or an angle steel main limb piece installation structure.
2. The lifting, rotating, and variable amplitude mechanisms are all controlled by variable frequency speed regulation;
3. The lifting arm can be combined with multiple arm lengths for use.

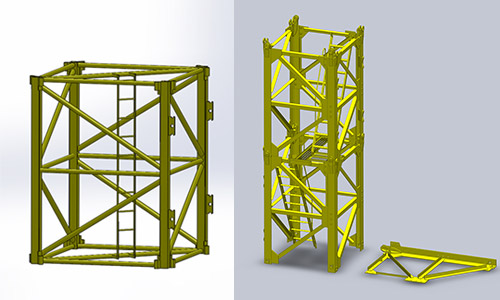

The tower structure can adopt integral standard sections, and the connecting sleeve adopts diagonal dovetail type and high-strength bolt connection; You can also choose to assemble standard sections with sheet metal and connect them with pin shafts.

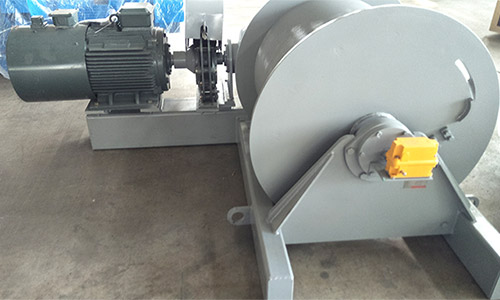

The 10t lifting mechanism adopts variable frequency speed control technology, which runs smoothly without impact; The drum is thick and short, which extends the service life of the steel wire rope.

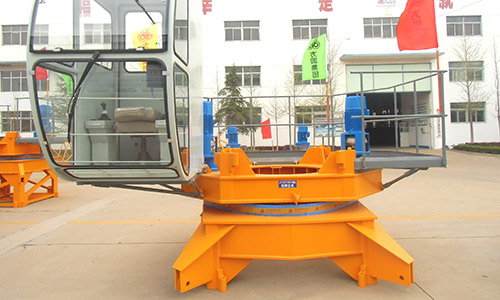

Design, installation and positioning steps for the upper turntable structure and slewing support; The rotary motor adopts torque motor and variable frequency control, which ensures more stable rotary performance.
| name | Company | parameter | ||||||
|---|---|---|---|---|---|---|---|---|
| Rated lifting torque | kN.m | one thousand two hundred and fifty | ||||||
| Maximum lifting capacity | t | ten | ||||||
| Work range; | m | 2.5～50/55/60 | ||||||
| Lifting capacity at maximum working range | t | one point five | ||||||
| Lifting height | m | Magnification ratio | Independent style | Adhesive type | ||||
| two | fifty | two hundred | ||||||
| four | fifty | one hundred | ||||||
| Lifting performance | Magnification ratio |
|
two | four | ||||
| Lifting speed | m/min | ninety | forty-five | forty-five | twenty-two point five | |||
| Lifting capacity; | t | two point five | five | five | ten | |||
| Rotation speed | r/min | 0-0.62 | ||||||
| derricking speed | m/min | 0-58 | ||||||
| Lifting speed; | m/min | zero point three three | ||||||
| Sectional dimensions of tower body | m | 2×2×3 | ||||||
| Balance weight; | t | seventeen point five | ||||||
| Working temperature; | ℃ | -20～+40 | ||||||
| Whole machine power | kW | 61.5 (excluding lifting motor) | ||||||
