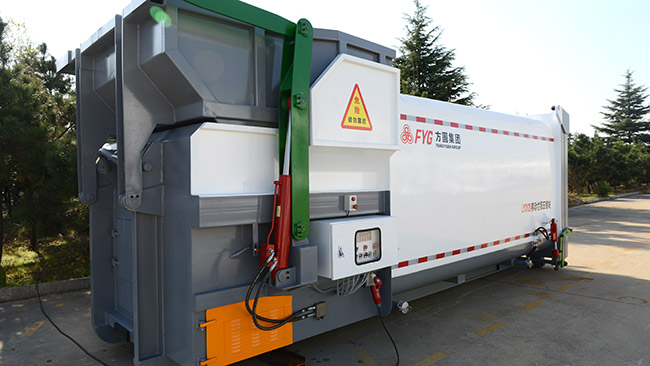

Integrated with sealing, deodorization, compression, and storage
Flexible and adaptable, with a small footprint
Sealed environmental protection

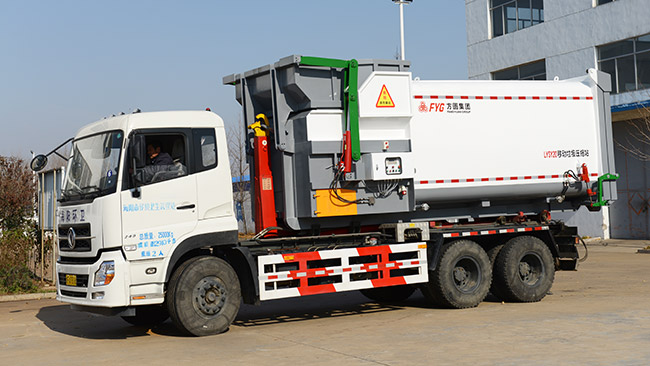

Adapt to the unloading needs of various garbage collection methods
The compression chamber and push head are designed without guide rails
High strength polymer polyethylene slider design is used between the compression chamber and the push head

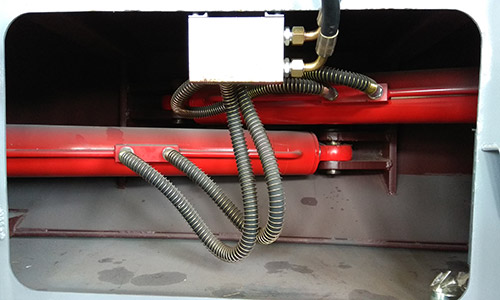

The push cylinder adopts a horizontal cross design, saving space and providing high thrust
The compression chamber is designed with a high bottom plate to ensure that the hydraulic components in the chamber are not soaked in sewage after compression

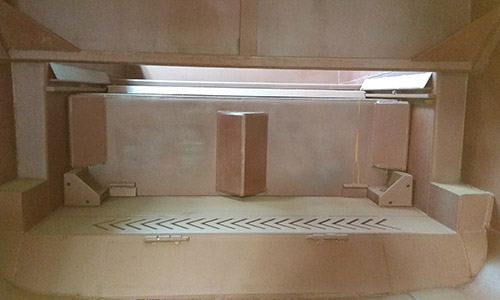

The front end of the push head is designed with an "M" structure, which can crush large garbage and achieve compression
Equipped with a retractable garbage barrier board, it can achieve separation between the front and rear chambers

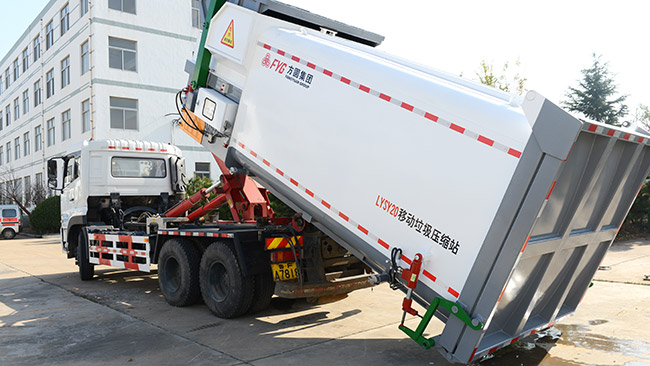

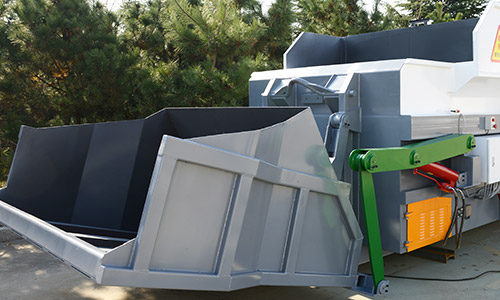

The flipping mechanism can stay in any working position
The settlement of the piston rod of the flipping cylinder is ≤ 8mm
Material lifting capacity 1200kg

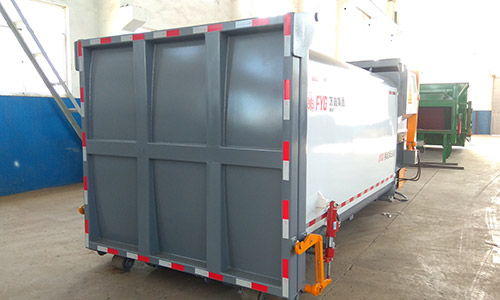

The rear door of the box adopts a ratchet oil cylinder hydraulic lock
The sealing strip of the rear door of the garbage bin is made of sealant to ensure the sealing performance of the rear door
The box adopts a porous plate structure set above the drainage hole

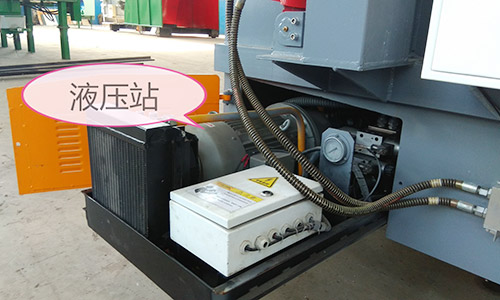

The system has high pressure, with a maximum of 280kN under strong pressure, high processing efficiency, and a large compression ratio.
The overall layout structure is compact and occupies less space.
Adjustable cycle times

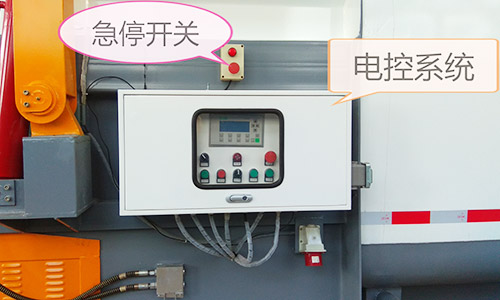

The compressor can automatically shut down when there is a safety hazard
Equipped with emergency braking and forced retreat functions
| project | Company | parameter |
|---|---|---|
| Theoretical productivity of compressor | t/h | twenty |
| Box volume | m³ | eighteen |
| Whole machine model |
|
LYSY20 |
| Feeding volume | m³ | one point five |
| Push the first round of work back and forth time | s | thirty-five |
| Maximum compressive force | KN | two hundred and eighty |
| System work pressure | MPa | eighteen |
| Transportation status, external dimensions L × W × H | mm | 6260×2650×2500 |
| Working state dimensions L × W × H | mm | 8220×2650×2500 |
| Power Supply | V/Hz | 380/50 |
