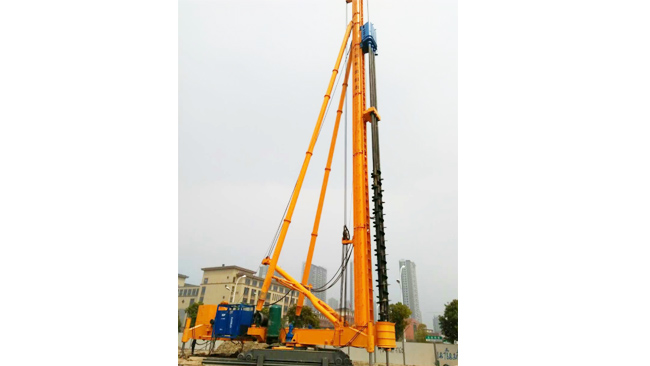

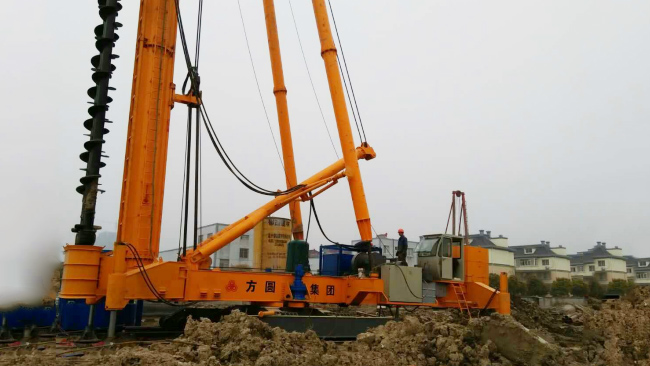

1. Adjust the two directions of the column and ensure high verticality of the pile making;
2. Fully electric drive, energy-saving and environmentally friendly
3. High construction efficiency, no dead corners in pile positions;
4. High quality electrical accessories are used, and the main components are from internationally renowned brands.

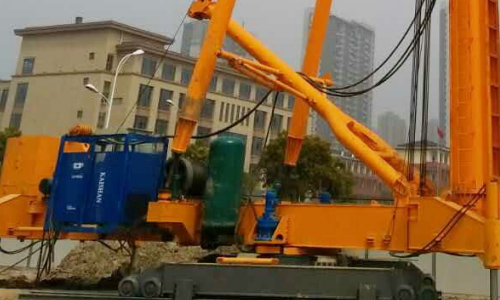

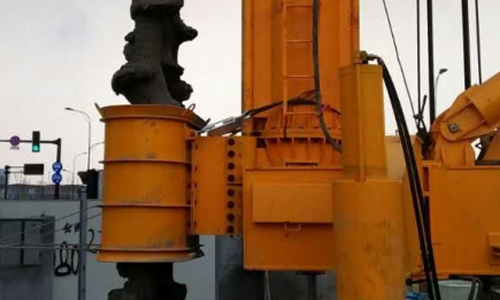

This connection method is the first of its kind in China, and the adjustment of the column angle is more flexible and reliable; The column is adjusted forward and backward using an oil cylinder, which accurately and quickly locates the pile position and effectively improves construction efficiency

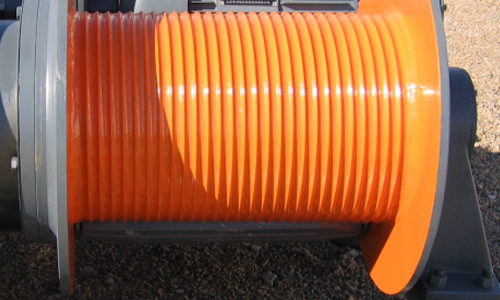

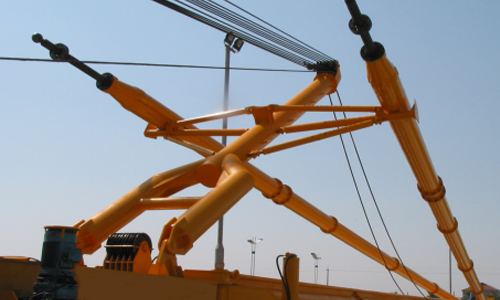

The lifting does not shake or deform, making it safer and smoother.

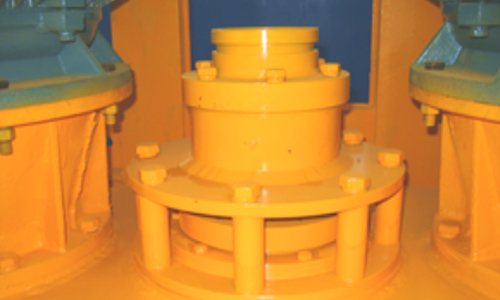

The unique sealing structure design of the power head can effectively prevent cement slurry from entering the gearbox body and extend the service life of the power head.

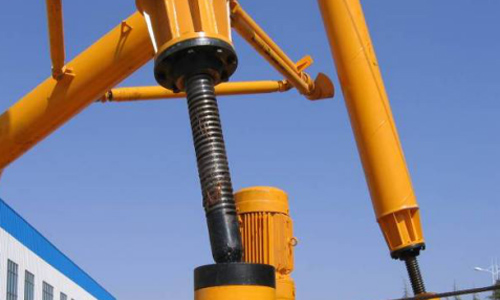

The support adjustment mechanism adopts screw transmission, with high adjustment accuracy and superior self-locking performance.

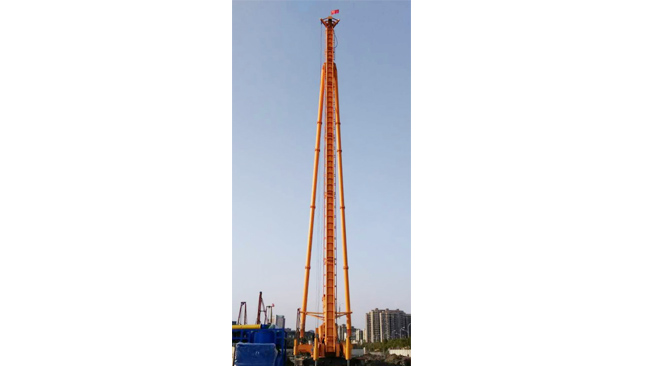

| Item & nbsp; Objective | Unit | Reference & nbsp; Number | ||
|---|---|---|---|---|
| 1 | Maximum drilling diameter | mm | 1000 | |
| 2 | Maximum drilling depth | m | 31 | |
| 3 | Allowable pile pulling force | kN | 800 | 4 | Center distance of column guide rail | mm | 600 × φ 102/330 × φ 70 |
| 5 | Overall dimensions (length × width × height) | m13.4 × 6.4 × 38.8 | 6 | Shoe grounding (length × width × span) | m | 8.3 × 1.05 × 6.4 |
| 7 | Pile frame climbing ability (without working device) | 4 ° (remove columns when going up and down the foundation pit) | 8 | Adjustable range of column | 5 ° forward tilt/3 ° backward tilt |
| 9 | climbing capacity of pile frame (without working device) | 4 ° (remove the column when going up and down the foundation pit) | ||
| 10 | winch | hoisting speed of main winch | m/min | 1.2/1.6/2.0 |
| hoisting speed of auxiliary winch | m/min | 20 | ||
| 11 | walking speed | km/h | 0.2 | |
| 12 | Turning speed | r/min | 0.38 | |
| 13 | slant support adjustment linear speed | m/min | 0.55 | |
| 14 | Rated pressure of hydraulic system | MPa | 16 | |
| 15 | Grounding pressure (without working device) | Legs | MPa | 0.62 |
| MPa | 0.05 | |||
| 16 | t | 75 | ||
