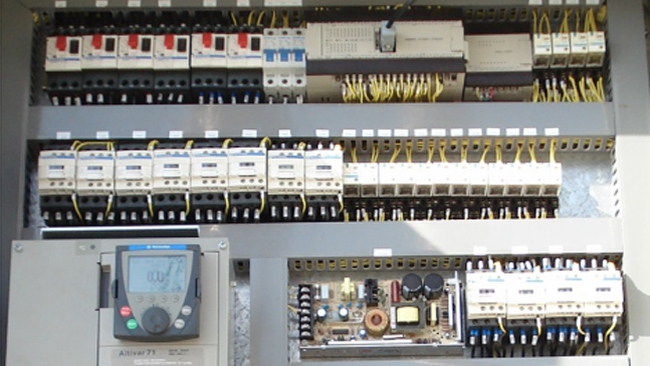

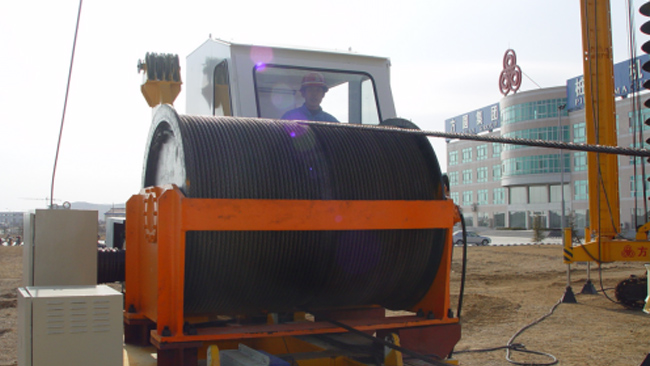

1. The winch and power head are regulated by dual frequency converters to ensure precise matching of their rotational speeds.
2. Unique lifting and pressurization device technology, with small pile forming errors and high bearing capacity.

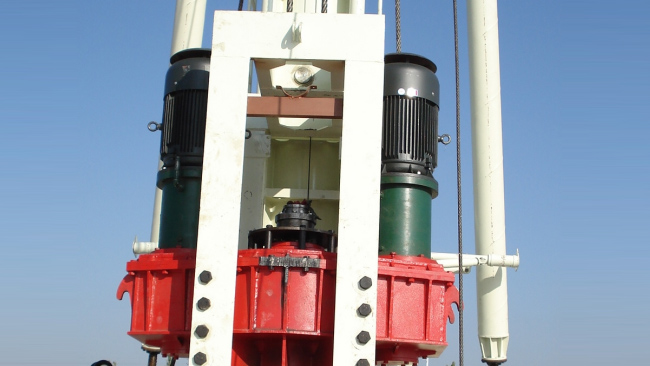

The high torque power head reducer is matched with variable frequency speed regulation to meet the construction requirements under various working conditions, with high precision in pile forming and saving concrete.

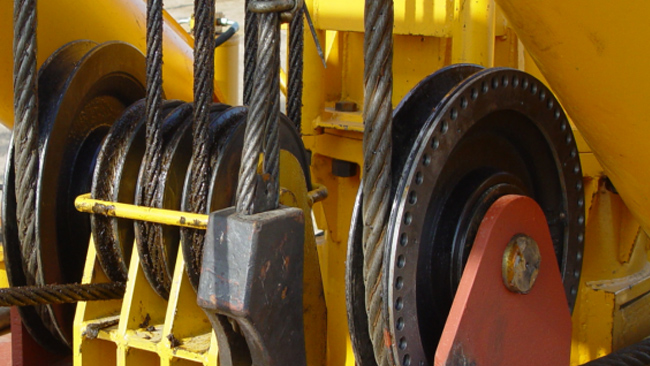

The lifting and pressurization closed-loop chain structure is designed with precise speed matching, good pile forming, minimal error, no waste of concrete, and can effectively improve the bearing capacity of the pile.

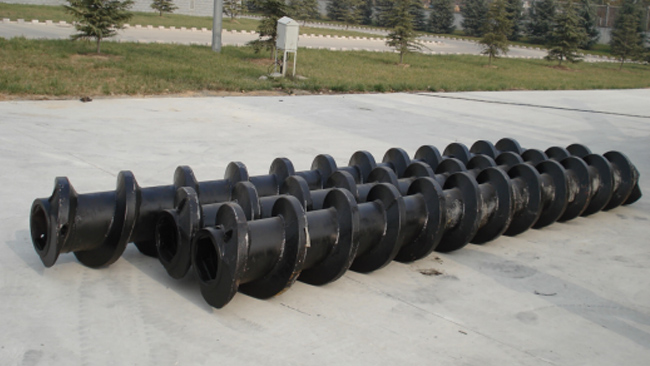

The drill rod and drill core tube are made of high-strength seamless steel pipes, and the blades are made of cast alloy steel, ensuring that the pile shape is regular while having extremely high durability& nbsp;
| Serial number | Item & nbsp; order | Company | Participate & nbsp; number | |
|---|---|---|---|---|
| one | Maximum drilling diameter | mm | six hundred | |
| two | Maximum drilling depth | m | twenty-seven | |
| three | Allowable pile pulling force | kN | six hundred and forty | |
| four | Center distance of column guide rail | mm | 600×φ102/330×φ70 | |
| five | Overall dimensions (length x width x height) | m | 13.6×6.0×32.2 | |
| six | Track grounding (length x width x span) | m | 4.5×0.8×6.0 | |
| seven | Pile frame climbing ability (without working device) |
|
4 ° (Remove the columns when going up and down the foundation pit) | |
| eight | Adjustable range of column |
|
Forward tilt 5 °/backward tilt 3 ° | |
| nine | Pile frame climbing ability (without working device) |
|
4 ° (Remove the columns when going up and down the foundation pit) | |
| ten | windlass | Main winch lifting speed | m/min | 0-2.4 |
| Secondary winch increases speed | m/min | twenty | ||
| eleven | Walking speed | km/h | zero point two eight | |
| twelve | Rotation speed | r/min | zero point three six | |
| thirteen | Adjust the linear speed of slant support | m/min | zero point eight | |
| fourteen | Rated pressure of hydraulic system | MPa | sixteen | |
| fifteen | Grounding voltage ratio (without working device) | Leg support | MPa | zero point five |
| track | MPa | zero point zero eight | ||
| sixteen | Total weight of pile frame (excluding working device) | t | sixty-five | |
