| Model | FYG52544GJBC | Vehicle parameters | Effective agitation volume (m ³) | 12 |
|---|---|---|---|
| Dimensions (mm) Length x Width x Height | 9450x2496x3920 | ||
| curb weight (kg) | 14100 | ||
| Total weight (kg) | 25000 | ||
| Wheelbase (mm) | 4050+1350 | ||
| Chassis parameter configuration | Machine type | N3 | |
| Chassis model | ZZ1257N4047C | ||
| Drive form | 6x4 | Fuel type | Diesel |
| Engine model number | WD615.95C | ||
| Power/speed (kW/rpm) | 250/1800-2000 | ||
| Emission standards | National II and III | Tire model | 12.00R20 |
| Mixing upper parameter configuration | >3 | ||
| Feed rate (m ³/min) | >2 | ||
| Discharge residual rate | <0.3% | ||
| Slump range (mm) | 90-210 | ||
| Water supply method | Air pressure water supply | ||
| Water tank volume (L) | 300 (can be customized according to the situation) | Working pressure (Mpa) | 0.35-0.4 |

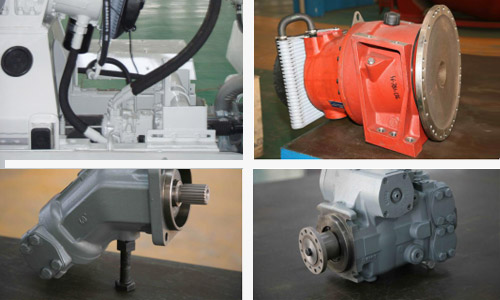

| Oil pump | 90ml/r | ||
| Motor | 90ml/r | ||
| Reducer | 65000N. m | ||
| Scope of use | Foreign|||
