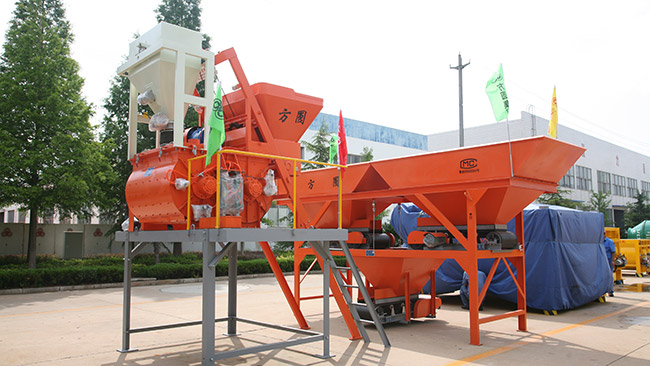

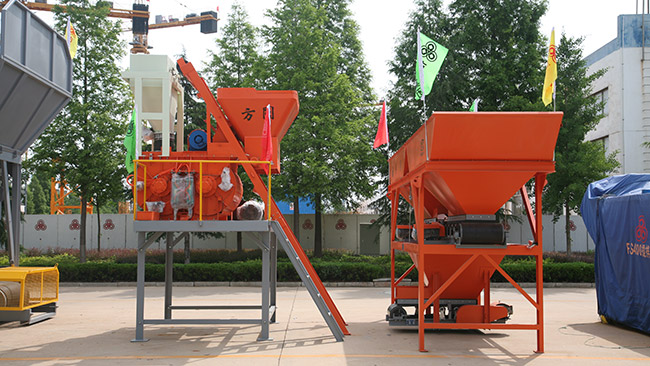

The HZS25Z series combined concrete mixing plant is a complete set of concrete mixing equipment consisting of feeding, batching, mixing, electrical control, and steel structure parts
| project | Company | parameter |
|---|---|---|
| Theoretical productivity | M³/h | ≤25 |
| Discharge capacity | L | five hundred |
| Feed capacity | L | eight hundred |
| Unloading height | M | 1.5/2.7/3.8 |
| Supporting batching machine | PLD800/PLD800-Ⅲ | |
| Total power | kW | thirty-five |
| control mode | Semi automatic/manual control mode | |
| Measurement method of aggregate | Electronic scale cumulative measurement | |
| Maximum weighing value for aggregate measurement | 1000Kg | |
| Measurement accuracy of aggregate | ±2% | |
| Cement measurement method | Electronic scale cumulative measurement | |
| Maximum weighing value for cement measurement | 300Kg | |
| Cement measurement accuracy | ±1% | |
| Water metering method | Time relay/& nbsp; Electronic scale measurement | |
| Maximum weighing value for water metering | */150Kg | |
| Water measurement accuracy | ±2% /& nbsp; ±1% |
