HZS120 Box type Concrete Mixing Plant

★ Box type structure, quick installation and debugging, no additional cost for transition.

★ Anti stick shaft design reduces cleaning workload.

★ Environmentally friendly design, which can achieve the recycling, separation and reuse of residual concrete.

★ Wear resistant technology, durable and long-lasting.

Service Hotline+86-0535-3297558
Features

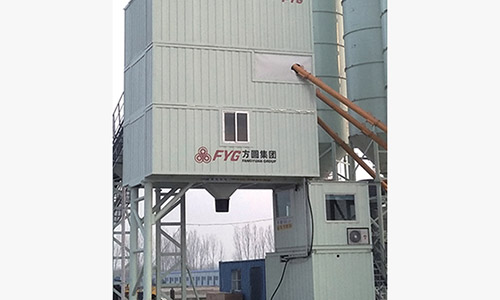

  • Main Box Structure
    Main box structure

    Main box structure, quick installation and disassembly;

    Closed structure, environmentally friendly and pollution-free;

    No secondary relocation expenses.

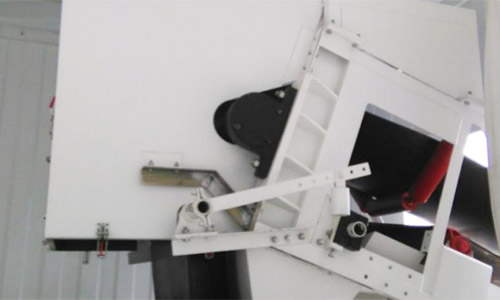

  • Environmental dust removal
    Environmental dust removal

    Proactive dust collection, large dust collection area, environmentally friendly and pollution-free;

    Polyurethane cleaner with long belt service life;

    Hanging roller, which can automatically adjust balance and has low noise and minimal wear on the belt.

  • Durable and wear-resistant design
    Durable and wear-resistant design

    Wear resistant technology design, easy to replace and durable;

    Built in vibration lining plate, with no damage to the bucket body. Smooth cutting.

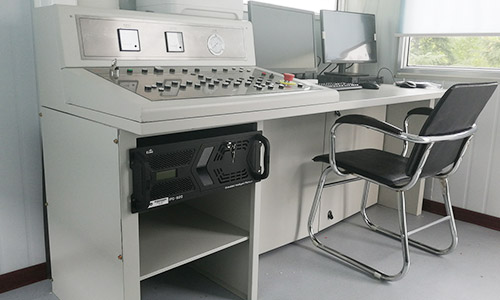

  • Advanced Control System
    Advanced control system

    Fully automatic control, stable performance, high measurement accuracy;

    Dynamic interface display and monitoring system, with clear visibility of the production process and real-time observation of the operating status of various parts of the mixing plant;

    Equipped with functions such as weighing, repairing, one click zeroing, one click calibration, automatic correction of weighing drop, and data uploading.

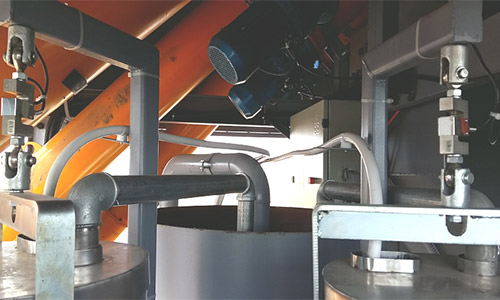

  • Stable and accurate measurement and supply of liquid additives
    Stable and accurate measurement and supply of liquid additives

    Stainless steel scale, PE storage tank, corrosion-resistant;

    Hanging structure of admixture scale, admixture supply diversion pipeline, high measurement accuracy, stable and reliable;

    The additive scale adopts anti leakage technology, which is safe and pollution-free.

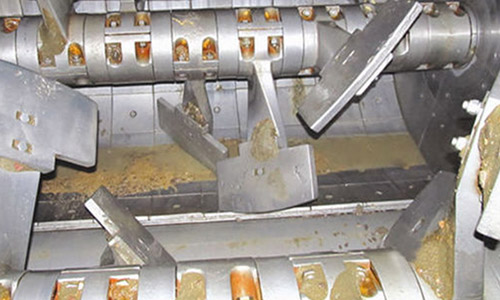

  • Anti stick shaft design, less cleaning workload
    Anti stick shaft design, less cleaning workload

    Anti stick shaft technology reduces the frequency and workload of cleaning the host;

    Pressure boosting spray type drainage technology, which has the function of automatic cleaning of the mixing drum while spraying evenly;

    Hydraulic unloading, powerful and low failure rate, quick installation and disassembly of multiple shaft end seals, and wear resistance.

Parameter
project Company parameter
Batching machine model
PLD3200QD-Ⅳ
Storage hopper capacity of batching machine 4×15
Maximum weighing value of aggregate scale kg 4×2000
Maximum weighing value of cement scale kg one thousand and two hundred
Maximum weighing value of fly ash scale kg four hundred
Maximum weighing value of water scale kg five hundred
Maximum weighing value of liquid additive scale kg fifty
Host unloading height m three point eight
Whole machine quality t fifty-six
Dimensions (length x width x height) m 41.7×21.5×19.5
Loading method
Belt type
Measurement accuracy aggregate % ±2
cement % ±1
Fly ash % ±1
water % ±1
Liquid additive % ±1
Note:
1. Cement silo and screw conveyor are optional components, and their capacity and size can be matched according to actual needs.
2. The external dimensions and weight are for reference only and will be determined based on the actual configuration.

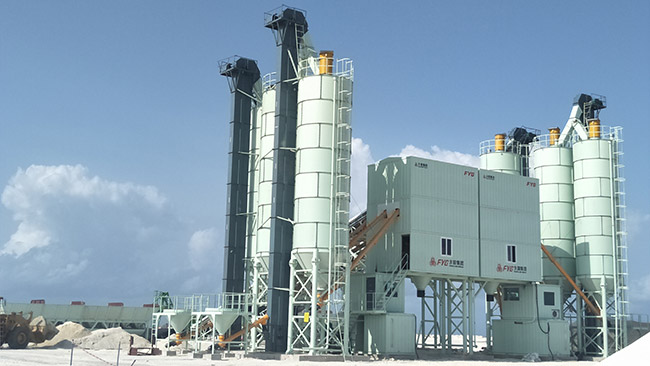

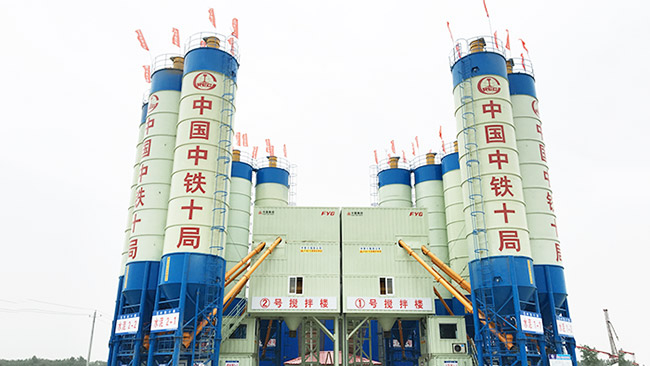

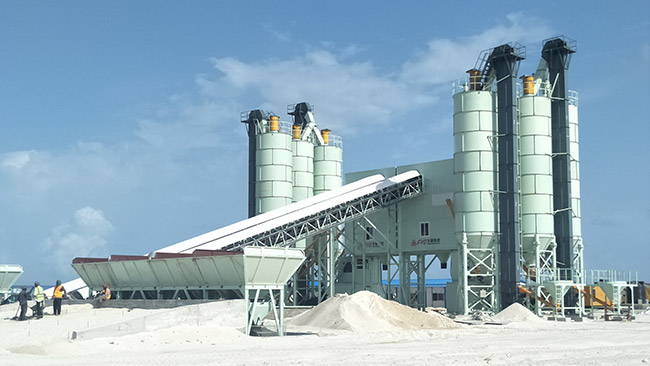

Case
