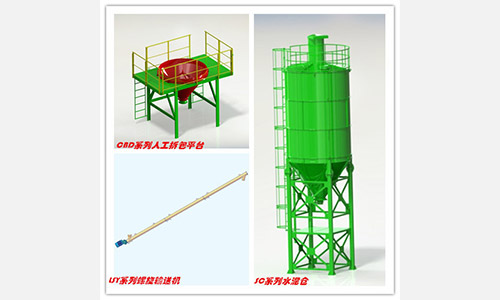

The HZS35Z series combined concrete mixing plant is a complete set of concrete mixing equipment consisting of feeding, batching, mixing, electrical control, and steel structure parts. Users can flexibly choose product configuration according to actual working conditions. Suitable for various construction sites, prefabrication factories, and commercial concrete production plants!
| project | Company | parameter |
|---|---|---|
| Theoretical productivity | M³/h | ≤35 |
| Discharge capacity | L | seven hundred and fifty |
| Feed capacity | L | one thousand and two hundred |
| Unloading height | M | 1.5/2.7/3.8 |
| Supporting batching machine | PLD1200/PLD1200-Ⅲ/PLD1200-Ⅳ | |
| Total power | kW | fifty-three |

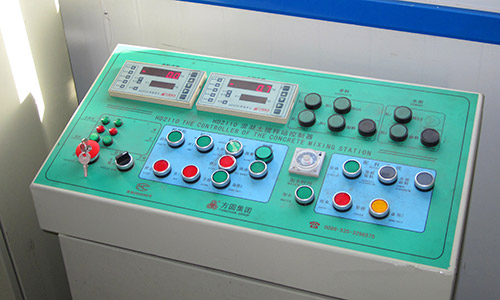

| control mode | Semi automatic/manual control mode | |
| Measurement method of aggregate | ||
| Maximum weighing value for aggregate measurement | 1500Kg | |
| Measurement accuracy of aggregate | ±2% | |
| Cement measurement method | Electronic scale cumulative measurement | |
| Maximum weighing value for cement measurement | 400Kg | |
| Cement measurement accuracy | ±1% | |
| Water metering method | ||
| Maximum weighing value for water metering | */200Kg | |
| Water measurement accuracy | ±2% / ±1% |
