HZS180 Box type Concrete Mixing Plant

★ Box type structure, quick installation and debugging, no additional cost for transition.

★ Anti stick shaft design reduces cleaning workload.

★ Environmentally friendly design, which can achieve complete recycling, separation and reuse of residual concrete.

★ Wear resistant technology, durable and long-lasting.

Service Hotline+86-0535-3297558
Features
  • Main Box Structure
    Main box structure

    The main container structure allows for quick installation and disassembly;

    Closed structure, environmentally friendly and pollution-free;

    No secondary relocation expenses.

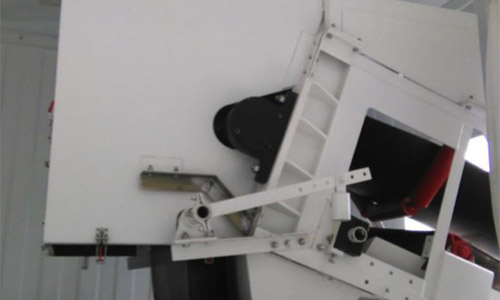

  • Environmental dust removal
    Environmental dust removal

    Proactive dust collection, large dust collection area, environmentally friendly and pollution-free;

    Polyurethane cleaner with long belt service life;

    Hanging roller, which can automatically adjust balance and has low noise and minimal wear on the belt.

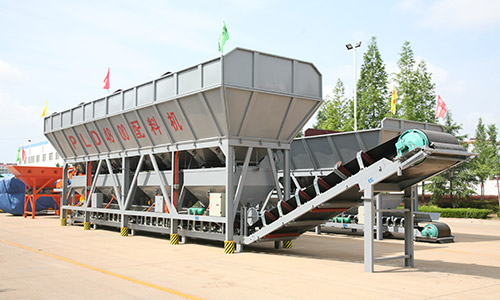

  • Large capacity aggregate batching machine
    Large capacity aggregate batching machine

    The storage hopper has a large capacity and a wide feeding width, which reduces the loading pressure of the loader.

    Head up structure design, shortening the operating height of the lifting bucket, high efficiency, and no deep excavation of foundation pits.

    Multi door structure, smooth feeding, high utilization rate of bucket capacity.

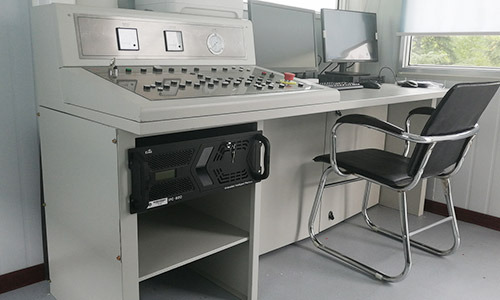

  • Advanced Control System
    Advanced control system

    Fully automatic control, stable performance, high measurement accuracy;

    Dynamic interface display and monitoring system, with clear visibility of the production process and real-time observation of the operating status of various parts of the mixing plant;

    Equipped with functions such as weighing, repairing, one click zeroing, one click calibration, automatic correction of weighing drop, and data uploading.

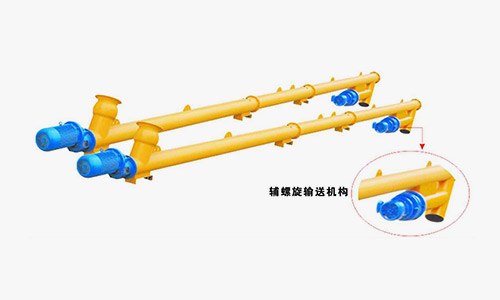

  • Accurate powder supply
    Accurate powder supply

    Universal ball head design, free placement;

    Oil free lubrication technology reduces maintenance frequency& nbsp;

    Configurable spiral sub machine to achieve powder micro metering.

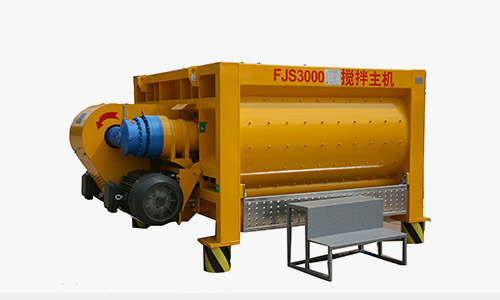

  • A high-performance mixing host
    Superior performance mixing host

    Large capacity, dual motor drive, capable of overloading up to 10%;

    Anti stick shaft technology reduces the frequency and workload of cleaning the host;

    Hydraulic unloading, powerful and low failure rate, quick installation and disassembly of multiple shaft end seals, and wear resistance.

Parameter
project Company parameter
Batching machine model
PLD4800QD-Ⅳ
Storage hopper capacity of batching machine 4×20
Maximum weighing value of aggregate scale kg 4×3000
Maximum weighing value of cement scale kg one thousand and six hundred
Maximum weighing value of fly ash scale kg six hundred
Maximum weighing value of water scale kg eight hundred
Maximum weighing value of liquid additive scale kg eighty
Host unloading height m four
Whole machine quality t sixty-five
Dimensions (length x width x height) m 44.3×21×18.6
Loading method
Belt type
Measurement accuracy aggregate % ±2
cement % ±1
Fly ash % ±1
water % ±1
Liquid additive % ±1
Note:
1. Cement silo and screw conveyor are optional components, and their capacity and size can be matched according to actual needs.
2. The external dimensions and weight are for reference only and will be determined based on the actual configuration.
