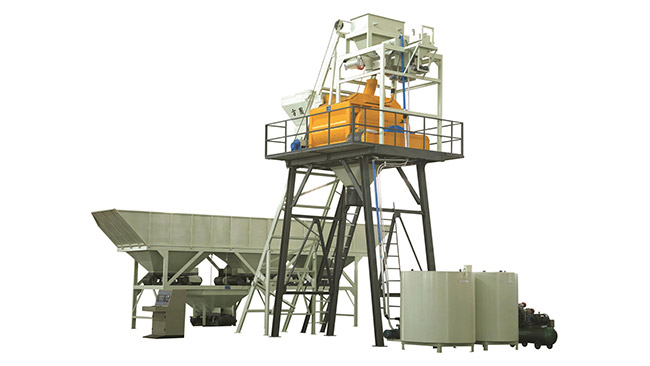

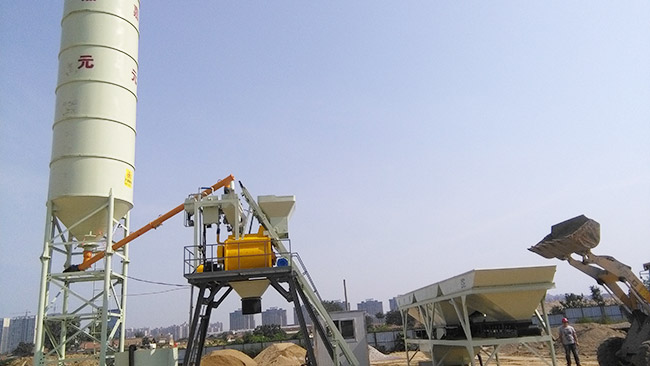

★ Traditional climbing bucket structure, economically applicable.
★ Anti collision maximum limit protection mechanism, safe and reliable.
★ Small footprint, flexible layout, and complete functions.
Traditional climbing bucket feeding, economical use.
Small footprint and flexible placement.
Modular structure, quick installation.
Large diameter transmission drum and roller, with a long service life for the belt.

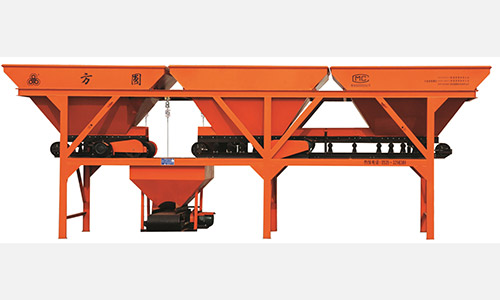

Belt conveyor batching, without card or material splashing.

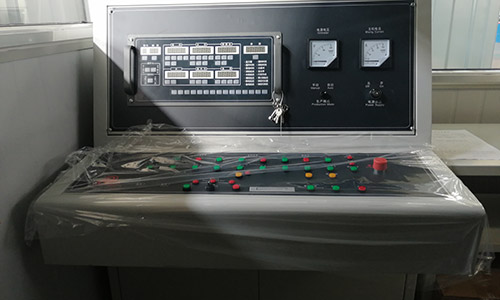

Instrument control, system stability, high measurement accuracy, and simple operation.
The configuration is advanced, and the main components are all imported products.

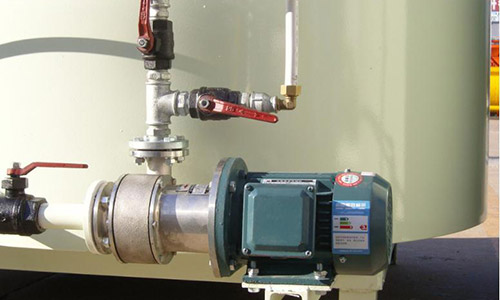

Stainless steel magnetic drive pump, corrosion-resistant.
The supply of additives adopts a diversion device to meet the requirements of precise measurement
The pressurized drainage technology allows for fast unloading and reduces the workload of cleaning the mixing drum.
Three point support structure, stable measurement and high accuracy.

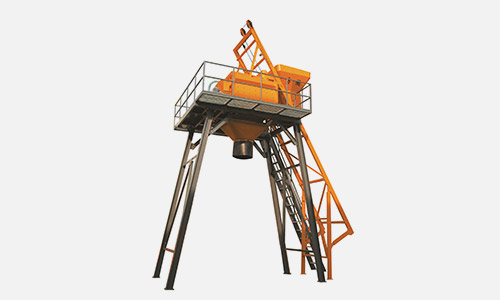

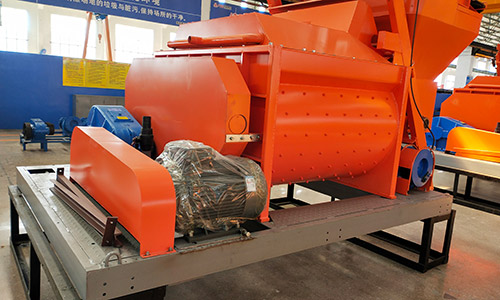

Double horizontal axis forced mixing host, with good mixing performance and wear resistance.
Anti stick shaft design reduces cleaning workload.
Superior shaft end technology, long service life.
| project | Company | parameter | |
|---|---|---|---|
| Batching machine model |
|
PLD1200-Ⅲ | |
| Storage hopper capacity of batching machine | m³ | 3×3 | |
| Maximum weighing value of aggregate scale | kg | one thousand and five hundred | |
| Maximum weighing value of cement scale | kg | four hundred | |
| Maximum weighing value of water scale | kg | two hundred | |
| Maximum weighing value of liquid additive scale | kg | forty | |
| Host unloading height | m | three point eight | |
| Whole machine quality | t | thirteen | |
| Dimensions (length x width x height) | m | 15.2×9.4×19.2 | |
| Loading method |
|
Lift bucket style | |
| Measurement accuracy | aggregate | % | ±2 |
| cement | % | ±1 | |
| water | % | ±1 | |
| Liquid additive | % | ±1 | |
| Note: | |||
| 1. Cement silo and screw conveyor are optional components, and their capacity and size can be matched according to actual needs. | |||
| 2. The external dimensions and weight are for reference only and will be determined based on the actual configuration. | |||
