★ Modular and highly industrialized, quick installation and debugging, and no additional on-site welding.
★ Equipped with aggregate temporary storage device, high production efficiency
★ Multiple belt forms, flexible arrangement

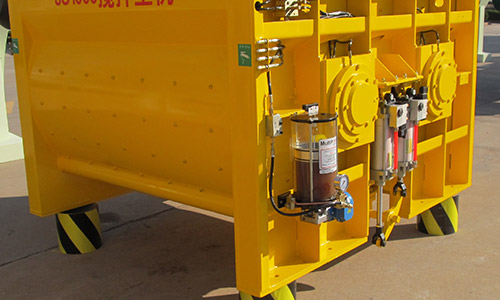

Double horizontal axis forced mixing host, with good mixing performance and wear resistance.
The maintenance port of the mixing drum cover is equipped with a safety protection device to ensure the safety of personnel.
Anti stick shaft design reduces cleaning workload.

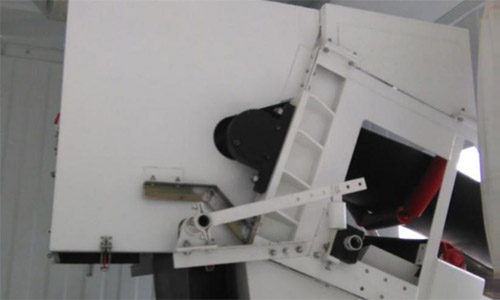

Proactive dust collection, large dust collection area, environmentally friendly and pollution-free;
Beating type cleaner, with good effect;
Pull rope switch ensures personnel safety.

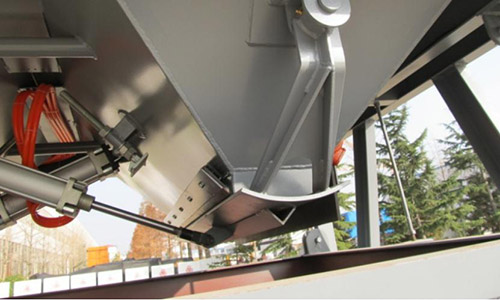

Opening adjustment device, anti card door, anti splash device, high measurement accuracy, safety and reliability.
Self regulating polyurethane head cleaner with minimal belt wear.

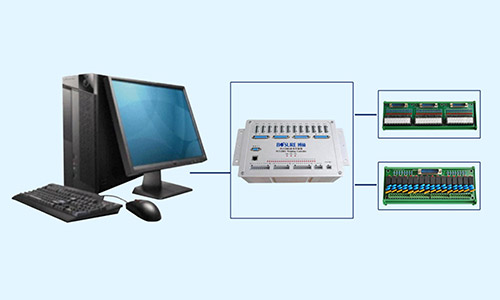

Adopting instrument+PLC intelligent control, the system is stable, with high measurement accuracy and simple operation. It has functions such as scale replenishment, scale deduction, continuous production, intelligence, and central control.
Capable of uploading data.

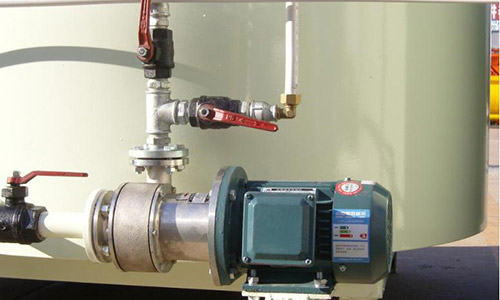

The additive pump adopts stainless steel magnetic drive pump, which is corrosion-resistant.
The supply of additives adopts a diversion device to meet the requirements of precise measurement.

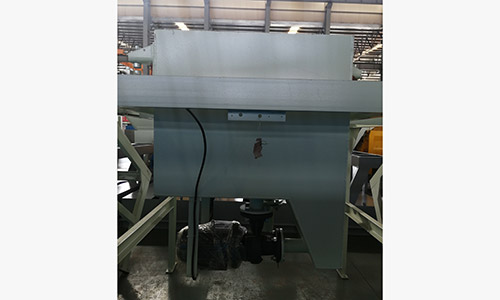

The pressurized drainage technology allows for fast unloading and reduces the workload of cleaning the mixing drum.
Three point support structure, stable measurement and high accuracy.
| project | Company | parameter | |
|---|---|---|---|
| Batching machine model |
|
PLD1600Q-Ⅲ | |
| Storage hopper capacity of batching machine | m³ | 3×7 | |
| Maximum weighing value of aggregate scale | kg | two thousand | |
| Maximum weighing value of cement scale | kg | six hundred | |
| Maximum weighing value of water scale | kg | two hundred and fifty | |
| Maximum weighing value of liquid additive scale | kg | forty | |
| Host unloading height | m | three point eight | |
| Whole machine quality | t | thirty-two | |
| Dimensions (length x width x height) | m | 25×12.5×19.4 | |
| Loading method |
|
Belt type | |
| Measurement accuracy | aggregate | % | ±2 |
| cement | % | ±1 | |
| water | % | ±1 | |
| Liquid additive | % | ±1 | |
| Note: | |||
| 1. Cement silo and screw conveyor are optional components, and their capacity and size can be matched according to actual needs. | |||
| 2. The external dimensions and weight are for reference only and will be determined based on the actual configuration. | |||
