★ Modular and highly industrialized, quick installation and debugging, and no additional on-site welding.
★ Equipped with aggregate temporary storage device, high production efficiency
★ Multiple belt forms, flexible arrangement

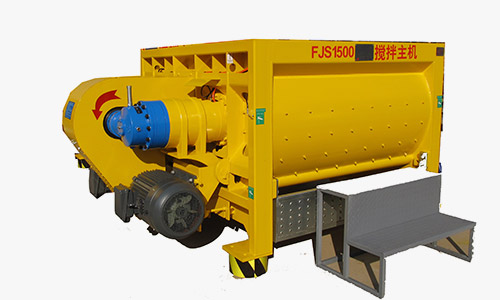

Large capacity, dual motor drive, capable of overloading up to 10%;
Anti stick shaft technology reduces the frequency and workload of cleaning the host;
Hydraulic unloading, powerful and low failure rate, quick installation and disassembly of multiple shaft end seals, and wear resistance.

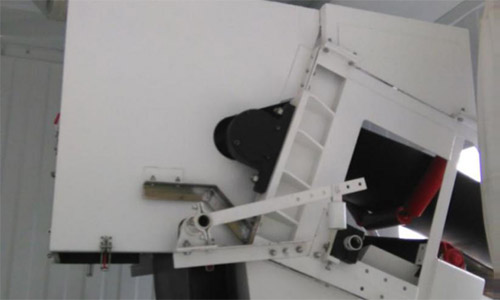

Proactive dust collection, large dust collection area, environmentally friendly and pollution-free;
Beating type cleaner, with good effect;
Pull rope switch ensures personnel safety.
Double door structure, smooth feeding, high utilization rate of bucket capacity.
Self regulating polyurethane head cleaner with minimal belt wear.

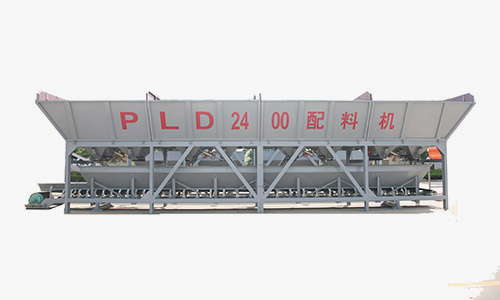

Opening adjustment device, anti card door, anti splash device, high measurement accuracy, safety and reliability.

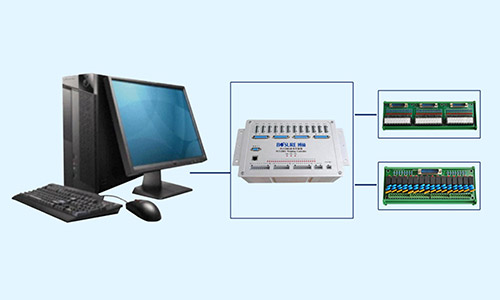

Adopting instrument+PLC intelligent control, the system is stable, with high measurement accuracy and simple operation. It has functions such as scale replenishment, scale deduction, continuous production, intelligence, and central control.
Capable of uploading data.

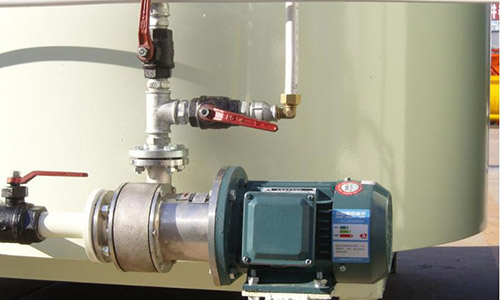

The additive pump adopts stainless steel magnetic drive pump, which is corrosion-resistant.
The supply of additives adopts a diversion device to meet the requirements of precise measurement.
The pressurized drainage technology allows for fast unloading and reduces the workload of cleaning the mixing drum.

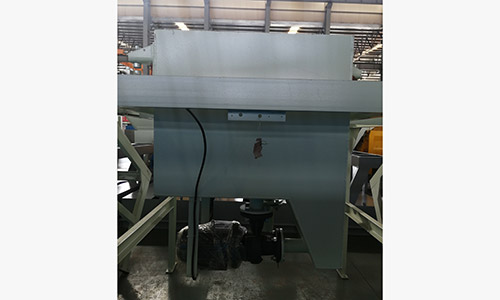

Three point support structure, stable measurement and high accuracy.
| project | Company | parameter | |
|---|---|---|---|
| Batching machine model |
|
PLD2400Q-Ⅳ | |
| Storage hopper capacity of batching machine | m³ | 4×15 | |
| Maximum weighing value of aggregate scale | kg | three thousand | |
| Maximum weighing value of cement scale | kg | one thousand | |
| Maximum weighing value of fly ash scale |
|
three hundred | |
| Maximum weighing value of water scale | kg | four hundred | |
| Maximum weighing value of liquid additive scale | kg | forty | |
| Host unloading height | m | three point eight | |
| Whole machine quality | t | thirty-nine | |
| Dimensions (length x width x height) | m | 26.6×21×19.6 | |
| Loading method |
|
Belt type | |
| Measurement accuracy | aggregate | % | ±2 |
| cement | % | ±1 | |
| Fly ash | % | ±1 | |
| water | % | ±1 | |
| Liquid additive | % | ±1 | |
| Note: | |||
| 1. Cement silo and screw conveyor are optional components, and their capacity and size can be matched according to actual needs. | |||
| 2. The external dimensions and weight are for reference only and will be determined based on the actual configuration. | |||
