★ Fully automatic control, easy to operate, stable and reliable.

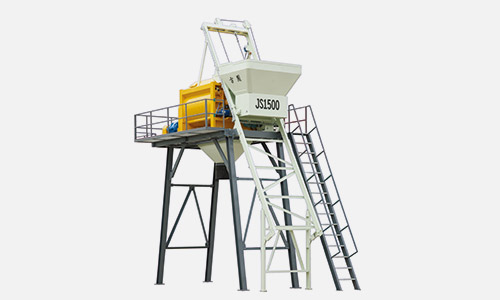

★ Traditional climbing bucket structure, economically applicable.
★ Anti collision maximum limit protection mechanism, safe and reliable.
Traditional climbing bucket feeding, economical use.
Small footprint and flexible placement.
Modular structure, quick installation.
Double door structure, smooth feeding, high utilization rate of bucket capacity.
Self regulating polyurethane head cleaner with minimal belt wear.
Opening adjustment device, anti card door, anti splash device, high measurement accuracy, safety and reliability.

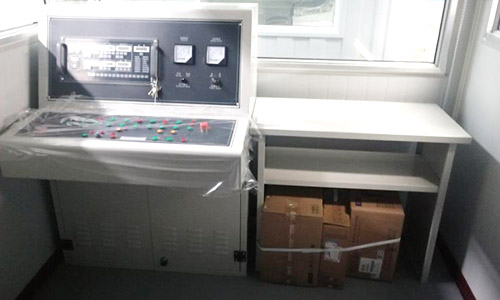

Adopting instrument+PLC intelligent control, the system is stable, with high measurement accuracy and simple operation.
The configuration is advanced, and the main components are all imported products.
The operation interface intuitively displays the running status.

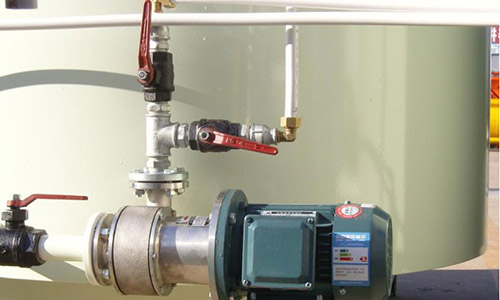

Stainless steel magnetic drive pump, corrosion-resistant.
The additive supply adopts a diversion device to meet the requirements of precise measurement.

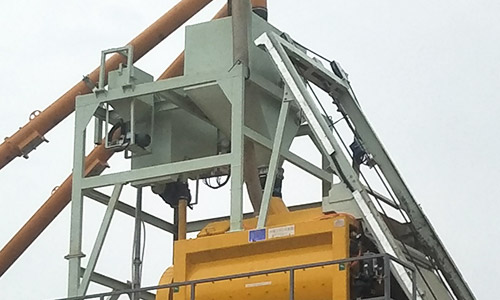

The powder scale and liquid agent scale are independently measured by electronic scales, with precise measurement.
It can achieve the measurement of various powders.
Pressure type drainage technology reduces the workload of cleaning the mixing drum.

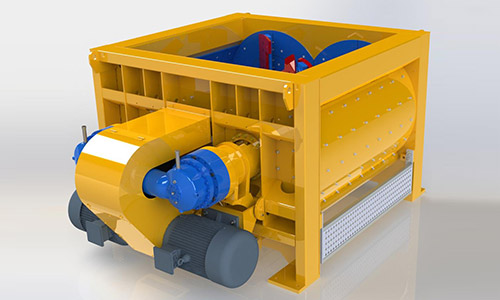

Double horizontal axis forced mixing host, with good mixing performance and wear resistance.
The maintenance port of the mixing drum cover is equipped with a safety protection device to ensure the safety of personnel.
Anti stick shaft design reduces cleaning workload.
Hydraulic station unloading, strong and powerful, with self-lubricating function.
| project | Company | parameter | |
|---|---|---|---|

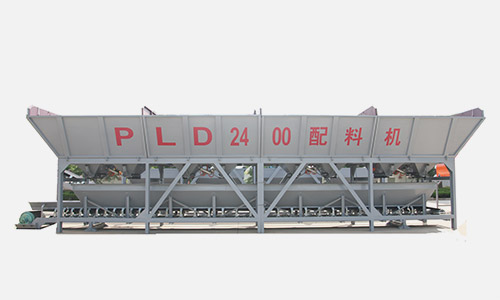

| Batching machine model |
|
PLD2400Q-Ⅲ | |
| Storage hopper capacity of batching machine | m³ | 3×15 | |
| Maximum weighing value of aggregate scale | kg | three thousand | |
| Maximum weighing value of cement scale | kg | one thousand | |
| Maximum weighing value of water scale | kg | four hundred | |
| Maximum weighing value of liquid additive scale | kg | forty | |
| Host unloading height | m | three point eight | |
| Whole machine quality | t | twenty-four | |
| Dimensions (length x width x height) | m | 28.1×11×19.2 | |
| Loading method |
|
Lift bucket style | |
| Measurement accuracy | aggregate | % | ±2 |
| cement | % | ±1 | |
| water | % | ±1 | |
| Liquid additive | % | ±1 | |
| Note: | |||
| 1. Cement silo and screw conveyor are optional components, and their capacity and size can be matched according to actual needs. | |||
| 2. The external dimensions and weight are for reference only and will be determined based on the actual configuration. | |||
