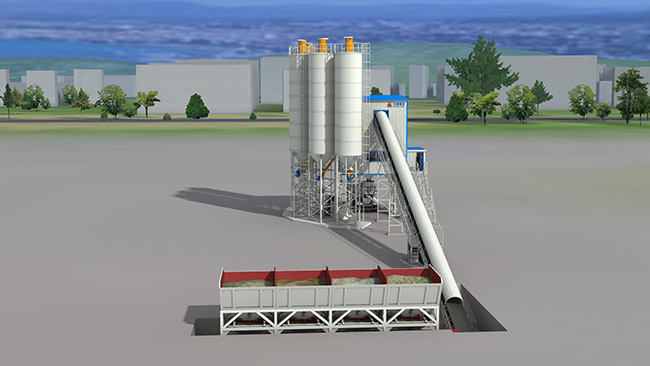

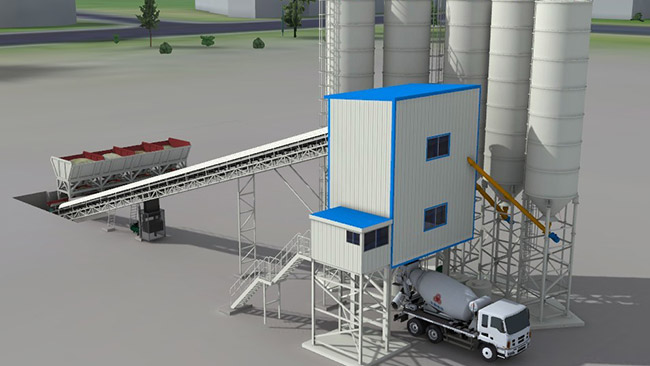

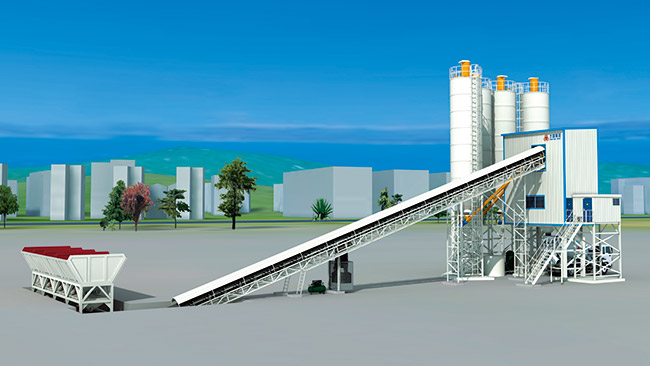

HZS120 oncrete mixing plant

★ Modular and highly industrialized, quick installation and debugging, and no additional on-site welding.

★ Designed with wear-resistant technology, it is durable and long-lasting.

★ Multiple belt forms, flexible arrangement

★ The mixer requires no manual cleaning and does not stick to the mixing shaft and drum cover.

Service Hotline+86-0535-3297558
Features

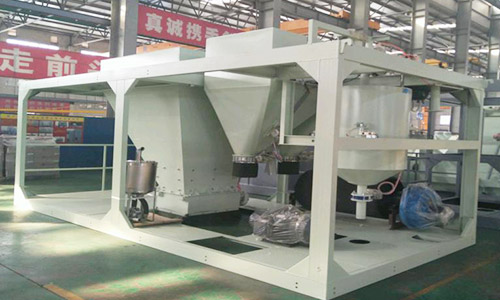

  • Standardized Packaging and Transportation
    Standardized packaging and transportation

    Standardized packaging and production to reduce on-site workload.

    There is no additional welding during on-site installation except for welding of equipment and foundation embedded parts.

    The optimized loading and transportation plan saves transportation costs for users.

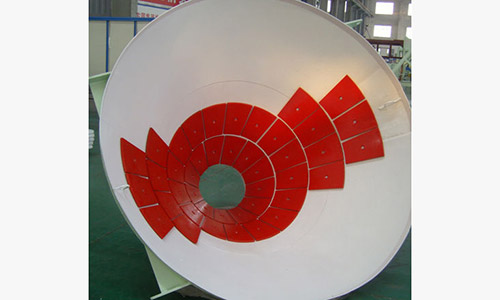

  • Durable and wear-resistant design
    Durable and wear-resistant design

    Wear resistant technology design, easy to replace and durable;

    Built in vibration lining plate, with no damage to the bucket body., The vibration effect is good.

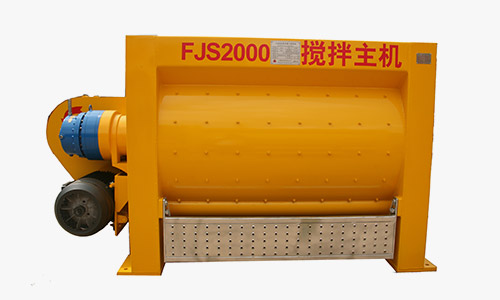

  • Superior performance mixing host
    Superior performance mixing host

    Large capacity, dual motor drive, capable of overloading up to 10%;

    Anti stick shaft technology reduces the frequency and workload of cleaning the host;

    Hydraulic unloading, powerful and low failure rate, quick installation and disassembly of multiple shaft end seals, and wear resistance.

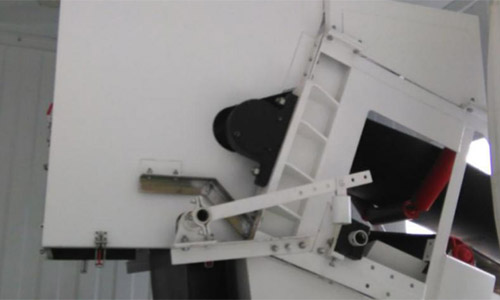

  • Environmental dust removal
    Environmental dust removal

    Proactive dust collection, large dust collection area, environmentally friendly and pollution-free;

    Polyurethane cleaner with long belt service life;

    Hanging roller, which can automatically adjust balance and has low noise and minimal wear on the belt.

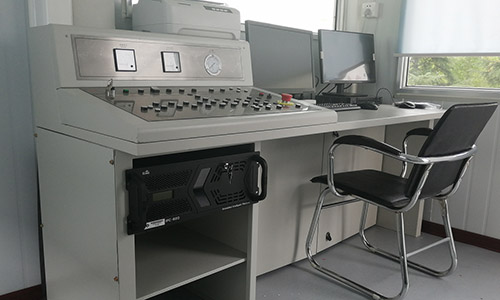

  • Advanced Control System
    Advanced control system

    Fully automatic control, stable performance, high measurement accuracy;

    Dynamic interface display and monitoring system, with clear visibility of the production process and real-time observation of the operating status of various parts of the mixing plant;

    Equipped with functions such as weighing, repairing, one click zeroing, one click calibration, automatic correction of weighing drop, and data uploading.

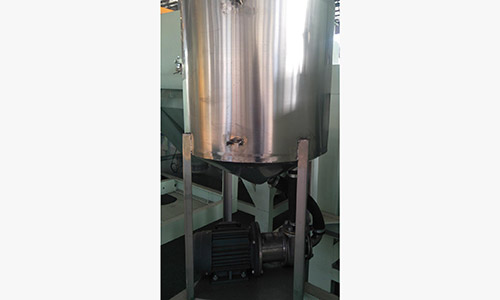

  • Anti leakage stainless steel additive scale
    Anti leakage stainless steel additive scale

    Stainless steel scale body, PE material storage bucket, corrosion-resistant.

    Anti leakage technology, safe and pollution-free.

    Spherical hanging structure, diversion technology, high precision.

Parameter
project Company parameter
Batching machine model
PLD3200QD-Ⅳ
Storage hopper capacity of batching machine 4×15
Maximum weighing value of aggregate scale kg 4×2000
Maximum weighing value of cement scale kg one thousand and two hundred
Maximum weighing value of fly ash scale
four hundred
Maximum weighing value of water scale kg five hundred
Maximum weighing value of liquid additive scale kg fifty
Host unloading height m three point eight
Whole machine quality t fifty-six
Dimensions (length x width x height) m 46.7×23×20
Loading method
Belt type
Measurement accuracy aggregate % ±2
cement % ±1
Fly ash % ±1
water % ±1
Liquid additive % ±1
Note:
1. Cement silo and screw conveyor are optional components, and their capacity and size can be matched according to actual needs.
2. The external dimensions and weight are for reference only and will be determined based on the actual configuration.
