★ Box type structure, quick disassembly and assembly, low investment cost
★ Small footprint and strong mobility
★ Low energy consumption and fewer vulnerable parts

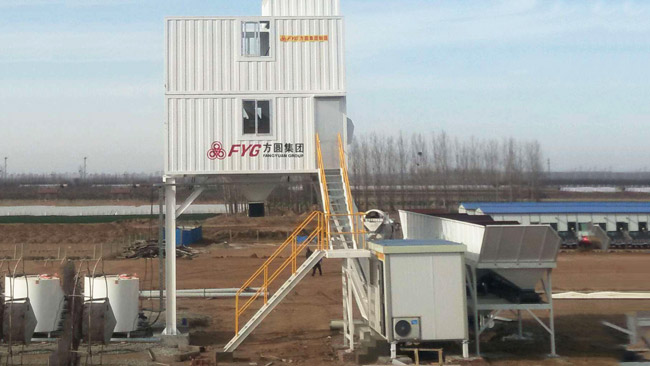

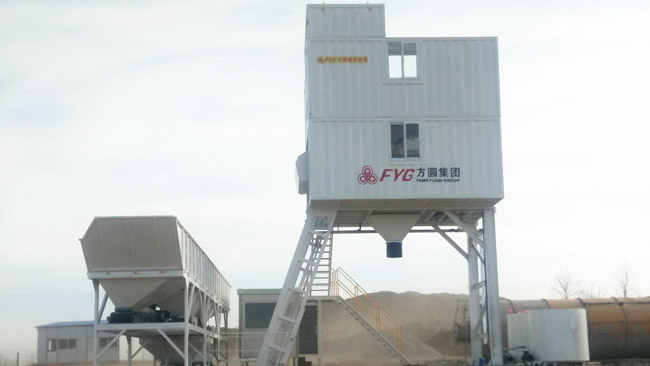

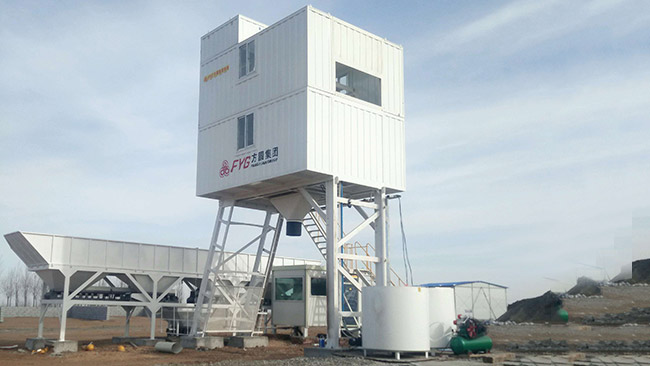

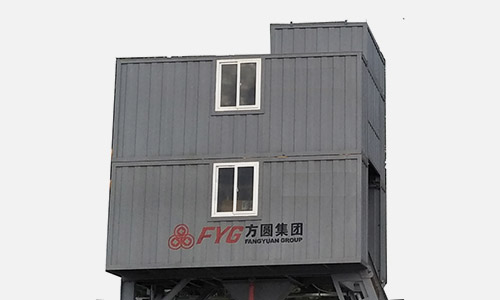

Box type main structure, easy to install and disassemble.
No external high-altitude operations and secondary relocation costs.
Small footprint and flexible placement.

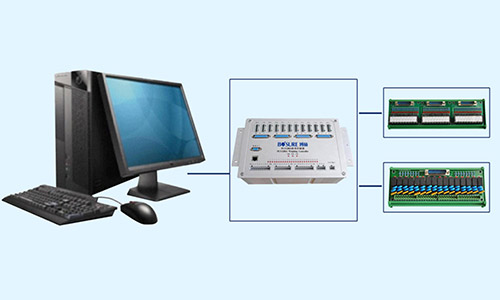

Adopting instrument+PLC intelligent control, the system is stable, with high measurement accuracy and simple operation.
Capable of uploading data.
The configuration is advanced, and the main components are all imported brands.

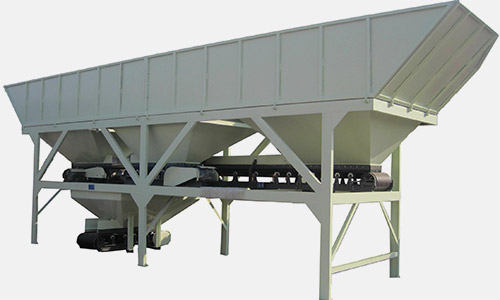

The larger storage hopper capacity and feeding width effectively alleviate the loading pressure of the loader.
Large diameter transmission drum and roller, with a long service life for the belt.

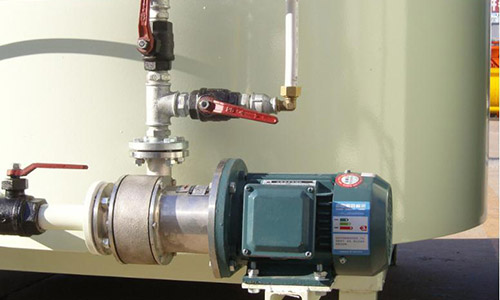

Stainless steel magnetic drive pump, corrosion-resistant.
The supply of additives adopts a diversion device to meet the requirements of precise measurement.

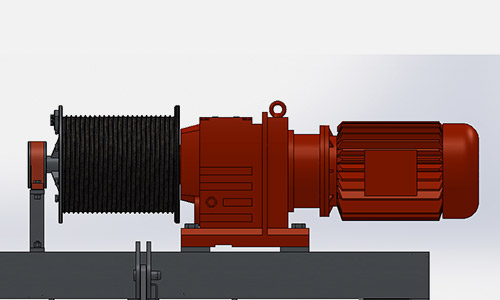

Large diameter drum, long service life of steel wire rope.
Multiple limit protection mechanisms ensure stable operation.
The feeding of the bucket is intermittent start stop, which consumes less energy.

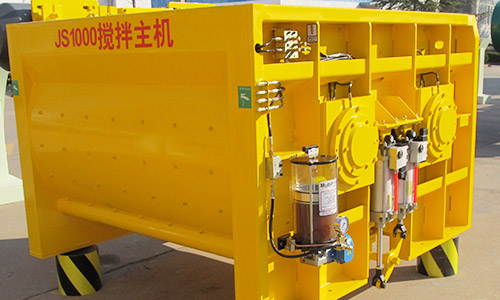

Double horizontal axis forced mixing host, with good mixing performance and wear resistance.
The maintenance port of the mixing drum cover is equipped with a safety protection device to ensure the safety of personnel.
Anti stick shaft design reduces cleaning workload.
Hydraulic station unloading, strong and powerful, with self-lubricating function.
| project | Company | parameter | |
|---|---|---|---|
| Batching machine model |
|
PLD1600-Ⅲ | |
| Storage hopper capacity of batching machine | m³ | 3×7 | |
| Maximum weighing value of aggregate scale | kg | two thousand | |
| Maximum weighing value of cement scale | kg | six hundred | |
| Maximum weighing value of water scale | kg | two hundred and fifty | |
| Maximum weighing value of liquid additive scale | kg | forty | |
| Host unloading height | m | three point eight | |
| Whole machine quality | t | twenty-four | |
| Dimensions (length x width x height) | m | 17.7×10.4×19.4 | |
| Loading method |
|
Tipping bucket | |
| Measurement accuracy | aggregate | % | ±2 |
| cement | % | ±1 | |
| water | % | ±1 | |
| Liquid additive | % | ±1 | |
| Note: | |||
| 1. Cement silo and screw conveyor are optional components, and their capacity and size can be matched according to actual needs. | |||
| 2. The external dimensions and weight are for reference only and will be determined based on the actual configuration. | |||
