▲ Integrated design with small footprint.
▲ Easy maintenance and low operating costs.
▲ Quick and easy installation, convenient transition.

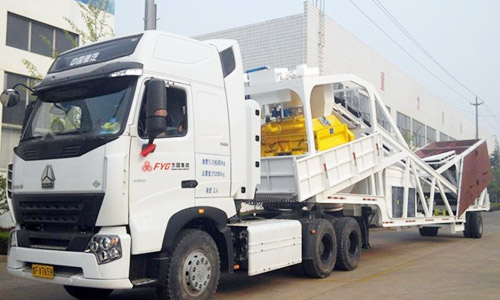

Trailing design, quick disassembly and installation during transition, convenient and fast transportation.
The entire station has a compact structure, small footprint, simple foundation construction, and low operating costs.

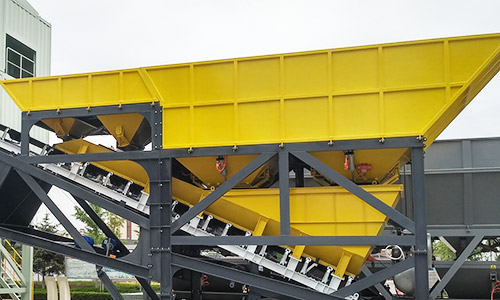

Double door structure, smooth feeding and effective utilization of bucket capacity;
Opening adjustment device, meeting the requirements of small range and precise measurement of aggregates;
Anti card and anti splash device to prevent card and material splashing.

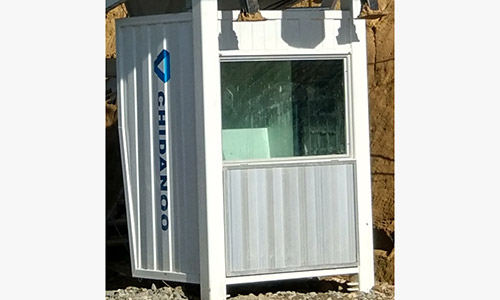

Computer control, simple operation, stable performance;
Imported electrical components have a long lifespan and low failure rate.

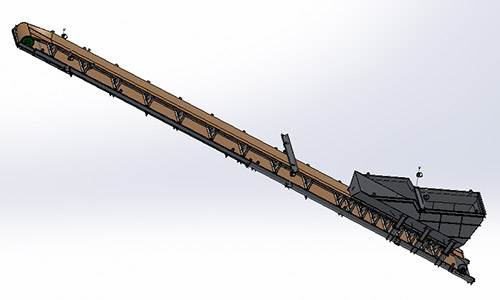

Hanging belt scale, accurate measurement, easy installation and maintenance;
The belt adopts a herringbone belt, which is safe and efficient.
Double horizontal axis forced mixing host, with good mixing performance and wear resistance.
Anti stick shaft design reduces cleaning workload.
Superior shaft end technology, long service life.
The pressurized drainage technology allows for fast unloading and reduces the workload of cleaning the mixing drum.

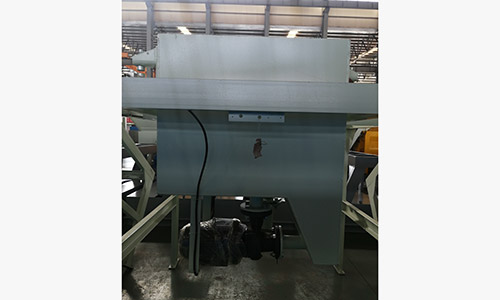

Three point support structure, stable measurement and high accuracy.
| project | Company | parameter | |
|---|---|---|---|
| Storage hopper capacity of batching machine | m³ | 2×5 | |
| Maximum weighing value of aggregate scale | kg | one thousand and five hundred | |
| Maximum weighing value of cement scale | kg | three hundred | |
| Maximum weighing value of water scale | kg | one hundred and fifty | |
| Maximum weighing value of liquid additive scale | kg | thirty | |
| Host unloading height | m | three point eight | |
| Whole machine quality | t | twenty-one | |
| Dimensions (length x width x height) | m | 18×11×15.9 | |
| Loading method |
|
Belt type (herringbone belt) | |
| Measurement accuracy | aggregate | % | ±2 |
| cement | % | ±1 | |
| water | % | ±1 | |
| Liquid additive | % | ±1 | |
| Note: | |||
| 1. Cement silo and screw conveyor are optional components, and their capacity and size can be matched according to actual needs. | |||
| 2. The external dimensions and weight are for reference only and will be determined based on the actual configuration. | |||
