HZS240 oncrete mixing plant

★ Modular and highly industrialized, quick installation and debugging, and no additional on-site welding.

★ Designed with wear-resistant technology, it is durable and long-lasting.

★ Multiple belt forms, flexible arrangement

★ The mixer requires no manual cleaning and does not stick to the mixing shaft and drum cover.

Service Hotline+86-0535-3297558
Features

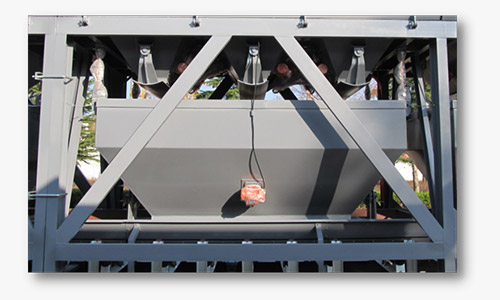

  • sand storage hopper
    Sand storage hopper

    Multi door structure, smooth feeding and effective utilization of bucket capacity.

    Large capacity storage hopper reduces the workload of the loader.

    Opening adjustment device, anti card door, anti splash device, high measurement accuracy, safety and reliability.

  • Finished material temporary storage function
    Finished material temporary storage function

    The main machine hopper has a temporary storage function to improve the efficiency of the mixing plant.

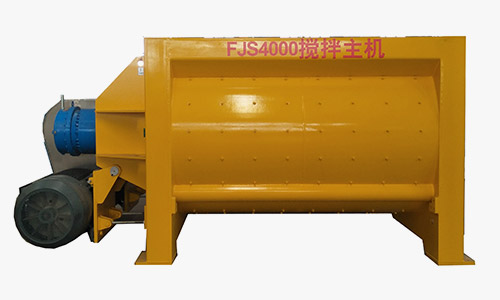

  • Superior performance mixing host
    Superior performance mixing host

    Large capacity, dual motor drive, capable of overloading up to 10%;

    Anti stick shaft technology reduces the frequency and workload of cleaning the host;

    Hydraulic unloading, powerful and low failure rate, quick installation and disassembly of multiple shaft end seals, and wear resistance.

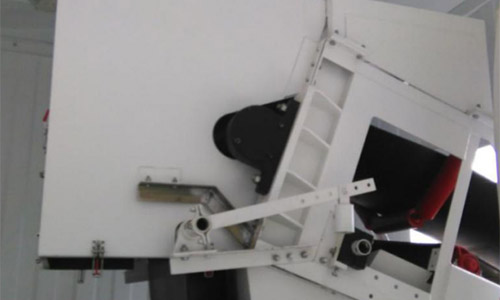

  • Environmental dust removal
    Environmental dust removal

    Proactive dust collection, large dust collection area, environmentally friendly and pollution-free;

    Polyurethane cleaner with long belt service life;

    Hanging roller, which can automatically adjust balance and has low noise and minimal wear on the belt.

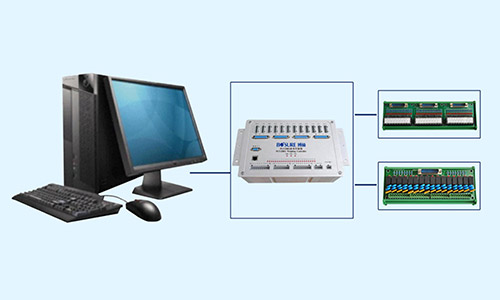

  • Intelligent Control
    intelligent control

    Adopting instrument+PLC intelligent control, the system is stable, with high measurement accuracy and simple operation. It has functions such as scale replenishment, scale deduction, continuous production, intelligence, and central control.

    Capable of uploading data.

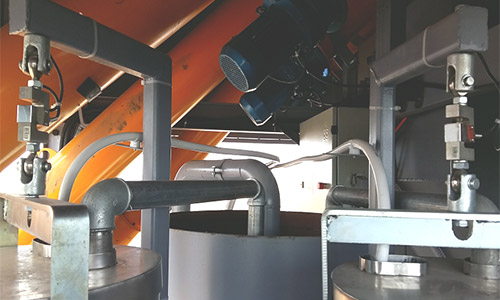

  • Stable and accurate measurement and supply of liquid additives
    Stable and accurate measurement and supply of liquid additives

    Stainless steel additive scale, PE material storage tank, corrosion-resistant;

    Hanging structure of admixture scale, admixture supply diversion pipeline, high measurement accuracy, stable and reliable;

    The additive scale adopts anti leakage technology, which is safe and pollution-free.

Parameter
project Company parameter
Batching machine model
PLD6400QD-Ⅳ
Storage hopper capacity of batching machine 4×25
Maximum weighing value of aggregate scale kg 4×4000
Maximum weighing value of cement scale kg two thousand and two hundred
Maximum weighing value of fly ash scale
eight hundred
Maximum weighing value of water scale kg one thousand
Maximum weighing value of liquid additive scale kg one hundred
Host unloading height m four point one
Whole machine quality t seventy-eight
Dimensions (length x width x height) m 50.8×20×21.3
Loading method
Belt type
Measurement accuracy aggregate % ±2
cement % ±1
Fly ash % ±1
water % ±1
Liquid additive % ±1
Note:
1. Cement silo and screw conveyor are optional components, and their capacity and size can be matched according to actual needs.
2. The external dimensions and weight are for reference only and will be determined based on the actual configuration.

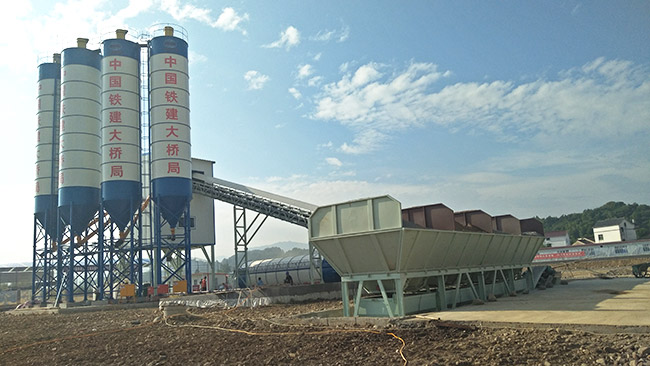

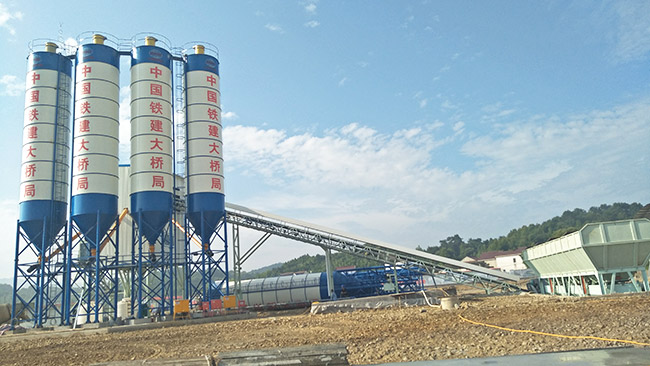

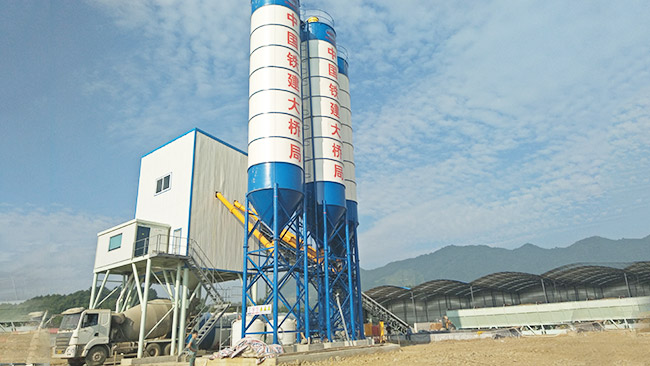

Case
