★ More: More output
★ Fast: Faster installation and disassembly
★ Good: Better safety
★ Province: More cost-effective investment

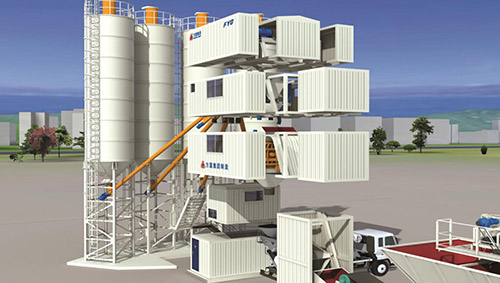

Box type structure, quick installation and disassembly, can produce finished concrete in 5-7 days.
No external high-altitude operations and secondary relocation costs.
No deep excavation of foundation pits, simple and fast foundation construction, low cost, and easy land reclamation.

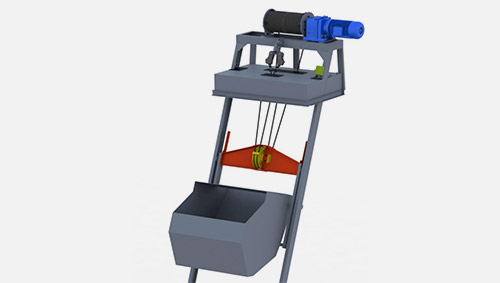

Bucket lift structure, small footprint, flexible placement, and few vulnerable parts.
Intermittent start stop of lifting bucket, with low energy consumption.
Improve the system's anti fall bucket and multiple protection mechanisms, ensuring safety and reliability, and equipped with secondary aggregate metering function.

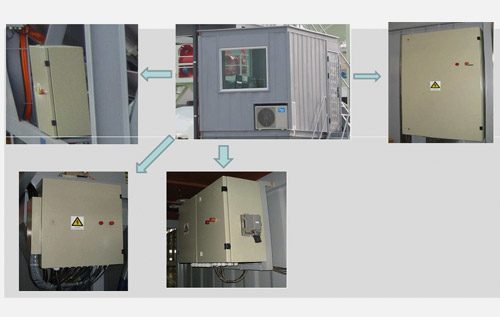

Split type control system, convenient for troubleshooting and maintenance.
Heavy duty connector wiring, plug and play on site.
The control system is easy to operate, stable and reliable, with functions such as scale replenishment, scale deduction, continuous production, intelligence, and central control.
Container transportation size production, optimized loading and transportation plan, low transportation cost.

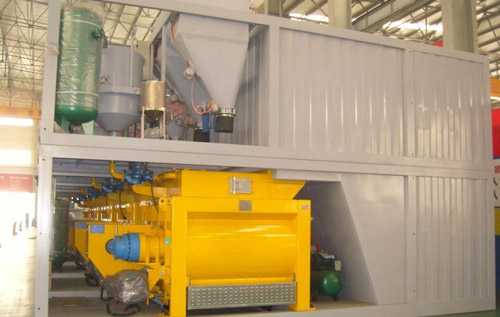

Standardized packaging and production to reduce on-site workload.
There is no additional welding during on-site installation except for welding of equipment and foundation embedded parts.
Multi door structure, smooth feeding, high utilization rate of bucket capacity.

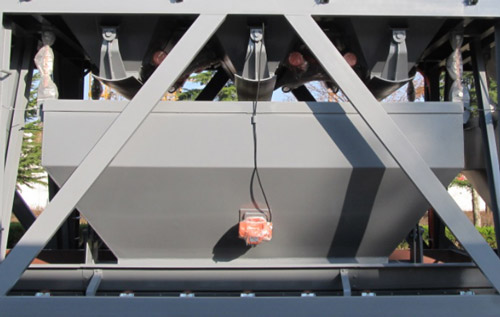

Large capacity storage hopper reduces the workload of the loader.
Opening adjustment device, anti card door, anti splash device, high measurement accuracy, safety and reliability.

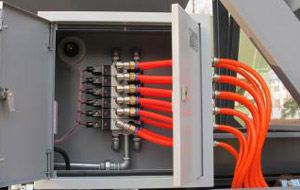

The batching machine is equipped with an air control cabinet, which facilitates winter construction for users, improves the service life of solenoid valves, and facilitates maintenance.
| Project | Unit | Parameters | Batching machine model |
|---|---|---|---|
| Storage hopper capacity of batching machine | m3 | 4 × 20 | |
| Maximum weighing value of aggregate scale | kg | 4 × 2000 | Maximum weighing value of cement scale | kg | 1200 |
| Maximum weighing value of fly ash scale | kg400 | ||
| Maximum weighing value of the water scale | kg | 500 | |
| >Maximum weighing value of liquid additive scale | kg | 50 | |
| Main machine unloading height | m | 3.8 | |
| Whole machine mass | t | 50 | |
| External dimensions (length x width x height) | m | >34 × 13.2 × 19.4||
| Feeding method | tipping bucket | ||
| Measurement accuracy | Aggregate | % | ± 2 |
| Cement | %± 1 | ||
| % | ± 1 | ||
| Water | % | ± 1 | |
| Liquid admixture | % | ± 1 | |
| Note: | 1. Cement silos and screw conveyors are optional components, Its capacity and size can be matched according to actual needs | ||
| 2. The external dimensions and weight are for reference only and will be determined according to the actual configuration. | |||
