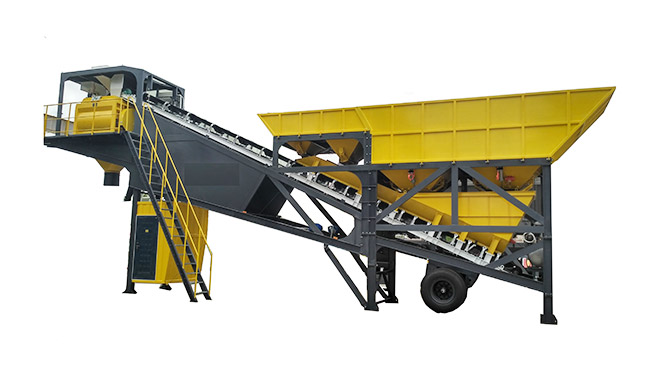

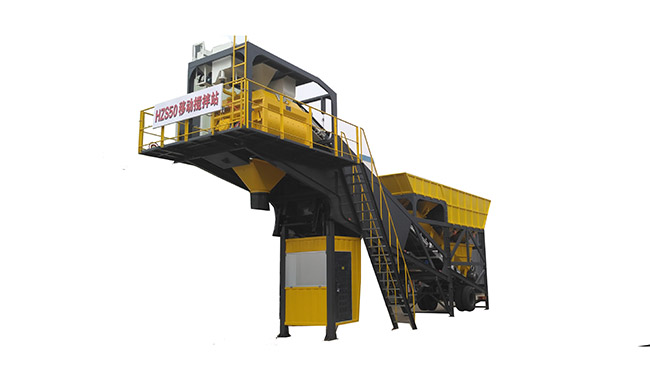

▲ Integrated design with small footprint.
▲ Easy maintenance and low operating costs.
▲ Quick and easy installation, convenient transition.

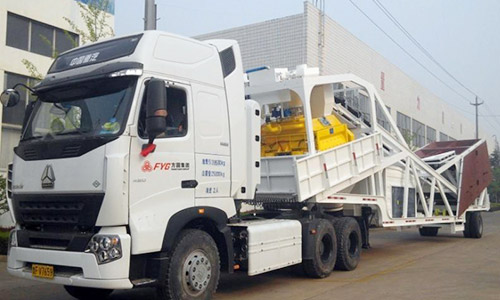

Trailing design, quick disassembly and installation during transition, convenient and fast transportation.
The entire station has a compact structure, small footprint, simple foundation construction, and low operating costs.

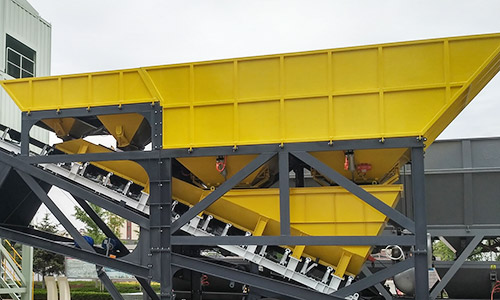

Double door structure, smooth feeding and effective utilization of bucket capacity;
Opening adjustment device, meeting the requirements of small range and precise measurement of aggregates;
Anti card and anti splash device to prevent card and material splashing.

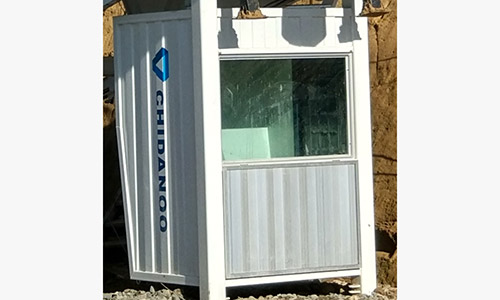

Computer control, simple operation, stable performance;
Imported electrical components have a long lifespan and low failure rate.

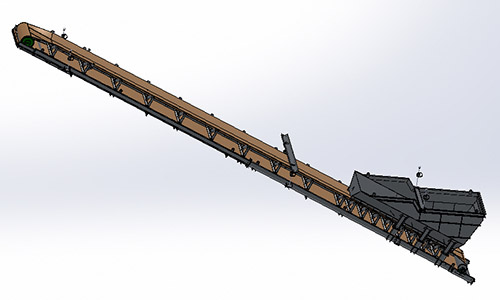

Hanging belt scale, accurate measurement, easy installation and maintenance;
The belt adopts a herringbone belt, which is safe and efficient.

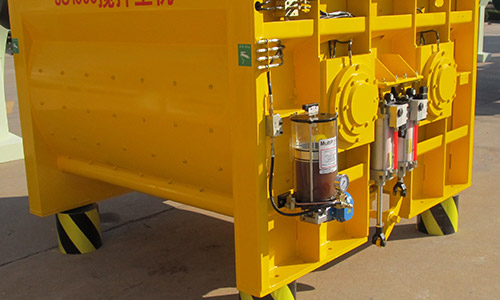

Double horizontal axis forced mixing host, with high mixing efficiency, strong performance, and good uniformity;
The fluid design of lining plates, blades, and mixing shafts has a long service life and is suitable for mixing various types of concrete.
The pressurized drainage technology allows for fast unloading and reduces the workload of cleaning the mixing drum.

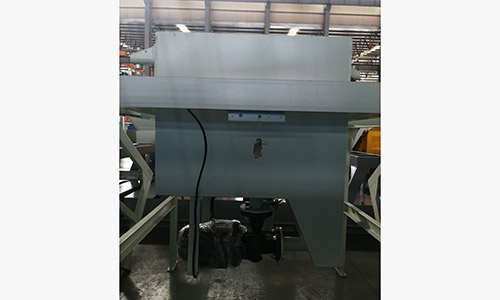

Three point support structure, stable measurement and high accuracy.
| Project | Unit | Parameters | |
|---|---|---|---|
| Batching machine storage hopper volume | m ³ | 3 × 5 | |
| Maximum weighing value of aggregate scale | kg | 2000 | |
| Maximum weighing value of cement scale | kg | 600 | |
| Maximum weighing value of water scale | kg | 250||
| Maximum weighing value of liquid admixture scale | kgTD>40Host unloading height | m | 3.8 | Whole machine quality | t | 25 |
| >Dimensions (length × width × height) | m | 19.8 × 11 × 15.9 | |
| Feeding method | Belt type (herringbone belt) | ||
| Measurement accuracy | Aggregate | % | ± 2 |
| Cement | ± 1 | ||
| Water | % | ± 1 | |
| Liquid admixture | % | ± 1 | |
| Note: | 1. Cement silos and screw conveyors are optional, and their capacity and size can be matched according to actual needs | ||
| 2. The external dimensions and weight are for reference only and will be determined according to the actual configuration. | |||
