★ More: More output
★ Fast: Faster installation and disassembly
★ Good: Better safety
★ Province: More cost-effective investment

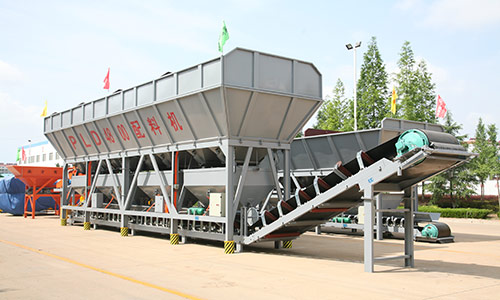

The storage hopper has a large capacity and a wide feeding width, which reduces the loading pressure of the loader.
Head up structure design shortens the operating height of the lifting bucket, resulting in high efficiency.
The storage hopper has a multi door structure, ensuring smooth discharge and high utilization of hopper capacity.

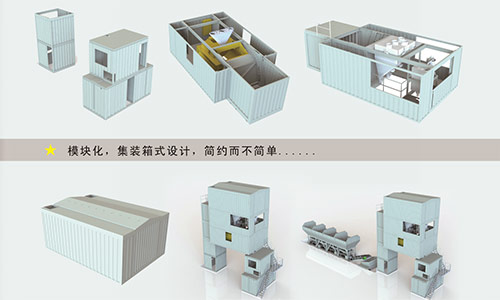

Box type structure, quick installation and disassembly, can produce finished concrete in 7-10 days.
No external high-altitude operations and secondary relocation costs.
No deep excavation of foundation pits, simple and fast foundation construction, low construction costs, and easy land reclamation.

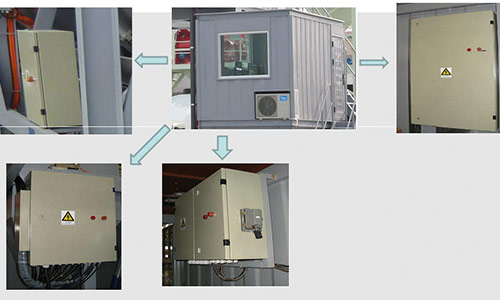

Split type control system, convenient for troubleshooting and maintenance.
Heavy duty connector wiring, plug and play on site.
The control system is easy to operate, stable and reliable, with functions such as scale replenishment, scale deduction, continuous production, intelligence, and central control.

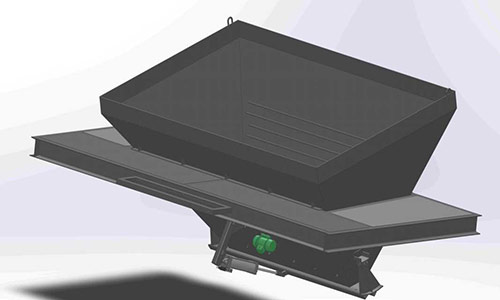

Add a temporary aggregate storage device at the bottom of the hopper to improve the production efficiency of the mixing plant.
Anti card door, anti splash device, smooth and safe discharge

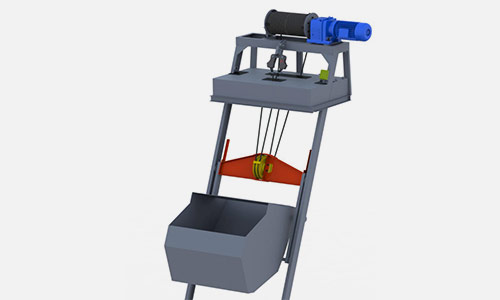

Bucket lift structure, small footprint, flexible placement, and few vulnerable parts.
The feeding of the bucket is intermittent start stop, which consumes less energy.
Anti fall bucket device, multiple protection mechanisms, safe and reliable, and equipped with secondary metering function for aggregates.
The first domestic company to pass the audit of Rheinland and obtain the EU CE certification.
| Project | Unit | Parameters | Batching machine model |
|---|---|---|---|
| Storage hopper capacity of batching machine | m ³ | 4 × 20 | |
| Maximum weighing value of aggregate scale | kg | 4 × 3000 | Maximum weighing value of cement scale | kg | 1600 |
| Maximum weighing value of fly ash scale | kg600 | ||
| Maximum weighing value of the water scale | kg | 800 | |
| >Maximum weighing value of liquid additive scale | kg | 80 | |
| Main machine unloading height | m | 3.8 | |
| Whole machine mass | t | 60 | |
| External dimensions (length x width x height) | m | >41 × 18 × 18.6||
| Feeding method | tipping bucket | ||
| Measurement accuracy | Aggregate | % | ± 2 |
| Cement | %± 1 | ||
| % | ± 1 | ||
| % | ± 1 | ||
| Liquid admixture | % | ± 1 | |
| Note: | 1. Cement silo and screw conveyor are optional parts, Its capacity and size can be matched according to actual needs | ||
| 2. The external dimensions and weight are for reference only and will be determined according to the actual configuration. | |||
