▲ Easy and fast installation.
▲ High integration, fast transition, and fast production.
▲ Simple foundation and low construction cost.
▲ Low maintenance and transportation costs.
Large dust removal area, environmentally friendly and pollution-free.

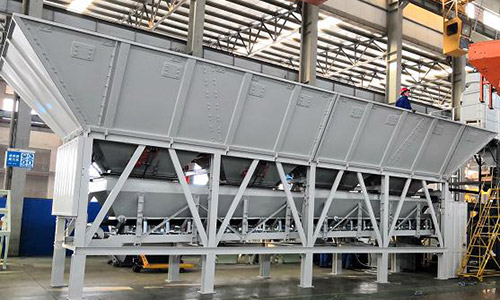

A larger storage capacity and loading width reduce the loading pressure on the loader;
Double door mechanism ensures smooth material discharge and effective utilization of bucket capacity;
Opening adjustment, anti card door, anti splash device, high measurement accuracy. Good safety.

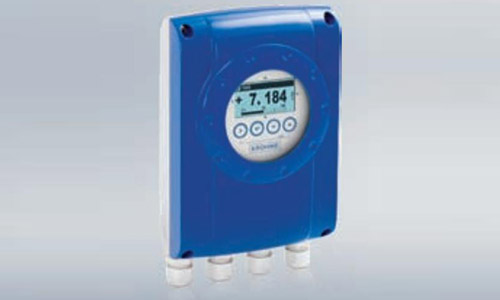

The water measurement adopts electromagnetic flowmeter, which has good continuity, stable performance, and high accuracy.
Self opening closed structure, environmentally friendly and pollution-free;
The packaging board is welded with profiled steel plates, and there is no cost for secondary relocation.

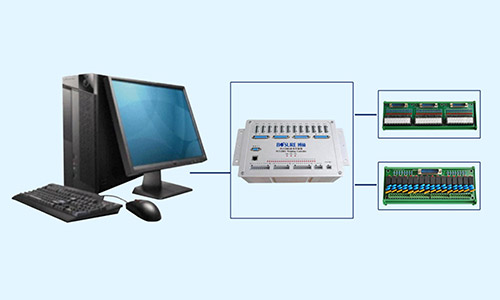

Adopting instrument+PLC intelligent control, the system is stable, with high measurement accuracy and simple operation.
The sheet-like structure has a small transport size and can meet the requirements of container transportation.
| project | Company | parameter |
|---|---|---|
| model |
|
PLZ80 |
| Aggregate bin capacity | m³ | 4×25 |
| Aggregate scale | kg | 2400~9600 |
| Belt conveyor bandwidth | mm | eight hundred |
| Maximum weighing value of cement scale | kg | two thousand and four hundred |
| Spiral conveyor conveying capacity | t/h | ninety |
| Water supply flow rate | m³/h | forty-six |
| Unloading height | m | three point eight |
| Air compressor displacement | m³/min | one |
| Dust collection device | m2 | fifty-four |
| Operating room | m2 | four |
