★ More: More output
★ Fast: Faster installation and disassembly
★ Good: Better safety
★ Province: More cost-effective investment

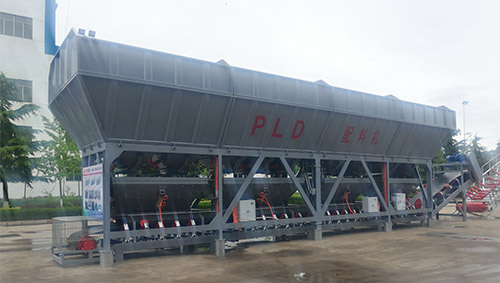

The storage hopper has a large capacity and a wide feeding width, which reduces the loading pressure of the loader.
Head up structure design shortens the operating height of the lifting bucket, resulting in high efficiency.
The storage hopper has a multi door structure with no dead corners for discharging, and the utilization rate of hopper capacity is high.
Anti stick board design for smoother cutting.
The aggregate batching is equipped with door opening adjustment, anti jamming and splash prevention devices to ensure measurement accuracy, safety and reliability.
The pneumatic system adopts a centralized pneumatic control cabinet, which is convenient for winter insulation, dust prevention of solenoid valves, and easy maintenance.

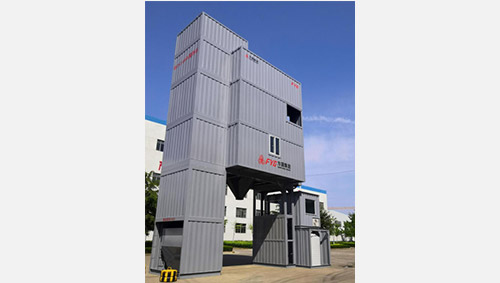

Box type structure, quick installation and disassembly.
No external high-altitude operations and secondary relocation costs.
No deep excavation of foundation pits, simple and fast foundation construction, low construction costs, and easy land reclamation.
Bus style one wire connection, simple and fast.

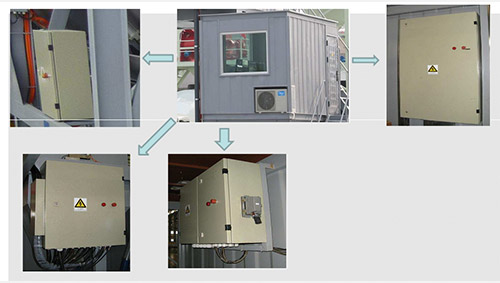

Split control system for easy troubleshooting and maintenance.
The control system is easy to operate, stable and reliable, with functions such as scale replenishment, scale deduction, continuous production, intelligence, and central control.

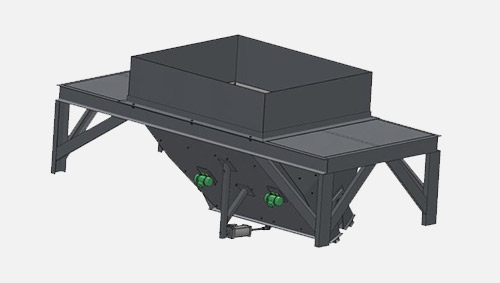

Add a temporary aggregate storage device at the bottom of the hopper to improve the production efficiency of the mixing plant.
Anti stick board design ensures smooth and non stick material cutting.

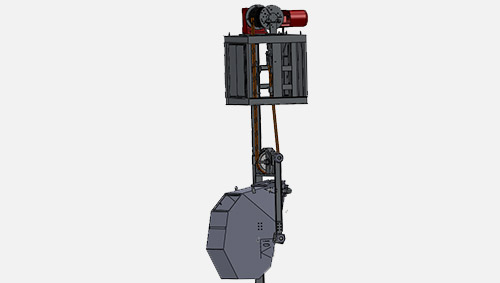

Double compacted strand steel wire rope for vertical lifting, with small footprint, flexible placement, and fewer vulnerable parts.
The intermittent variable frequency start stop of the lifting bucket consumes less energy.
Anti fall bucket device, multiple protection mechanisms, dual brake braking, stable and reliable.

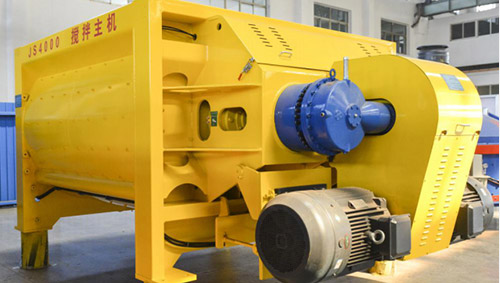

Large capacity, dual motor drive, capable of overloading up to 10%;
Anti stick shaft technology reduces the frequency and workload of cleaning the host;
Hydraulic unloading, powerful and low failure rate, quick installation and disassembly of multiple shaft end seals, and wear resistance.
Project | Unit | Parameters | |||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Batching machine model | Batching machine storage hopper volume | m3 | Maximum weighing value of aggregate scale | kg | Maximum weighing value of cement scale | kg | Maximum weighing value of fly ash scale | kg | Maximum weighing value of water scale | kg | Maximum weighing value of liquid admixture scale | kg | Host unloading height | m | Whole machine quality | t | Dimensions (length x width x height) | m | Loading method |
| Aggregate | % | Cement | % | Fly ash | % | Water | % | Liquid admixture | % | ±1 | ||
Case
JZB60 walking pile driver - Harbin Dalian high-speed railway construction site
Case year：
2011-05-16
WBZ500 Tianjin Yixin Import and Export Trading Co., Ltd. - Exporting to Zambia
Case year：
2019-09-03
Construction of HZS180D Concrete Mixing Plant for Dafenghua Expressway Project
Case year：
2020-04-07
Dongping Urban and Rural Engineering Construction HZS50D Concrete Mixing Plant
Case year：
2020-04-07
Construction of HZS120 Concrete Mixing Plant for Daxi Passenger Dedicated Line
Case year：
2020-04-30
| |||||||||||||||||||||||||||||||||
