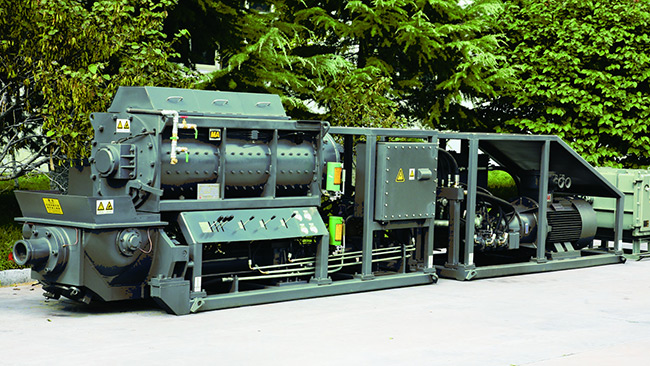

+High safety, meeting the construction requirements of gas coal mines
+Fully functional, with integrated feeding, mixing, and pumping capabilities
+Module design, suitable for underground transportation and assembly

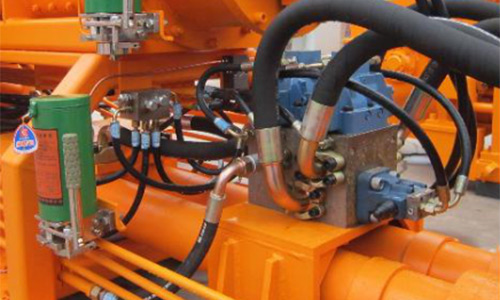

Adopting imported valve components, with excellent and reliable performance; Fully hydraulic directional control, suitable for underground construction containing hazardous gases. It can achieve infinite adjustment of the operation of each component.

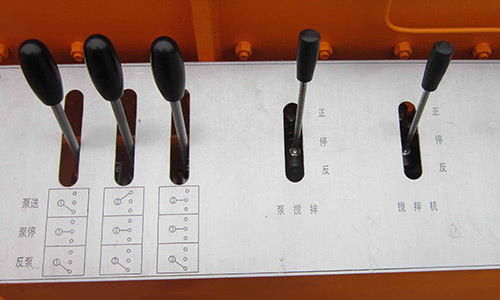

1. Central centralized control system, occupying fewer personnel.
2. The device is easy to operate.

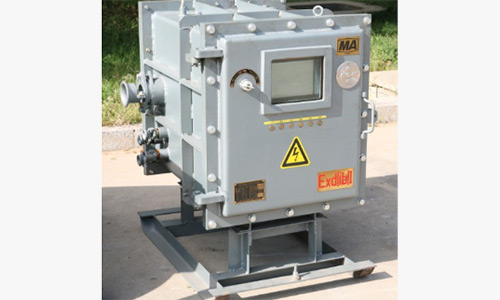

1. The entire electrical system only has one explosion-proof electric motor for coal mines, avoiding safety hazards.
2. It has two voltage operation modes and a wide range of applications.

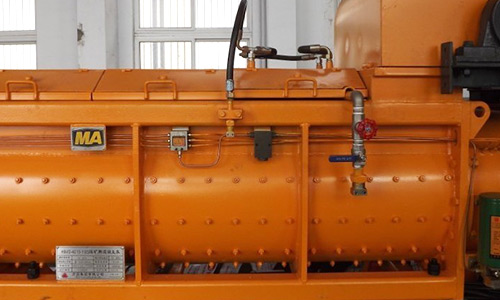

Can be continuously stirred, with high production efficiency. The speed is infinitely adjustable, which can effectively control the workability of concrete. Configure dust reduction system for environmentally friendly construction.

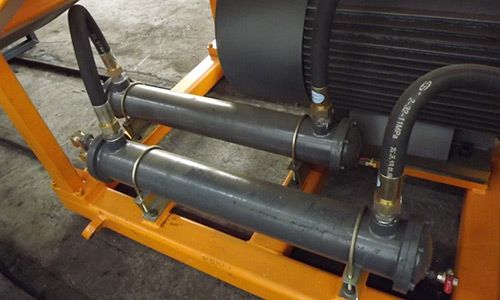

Double water cooling design, good cooling effect. Satisfy long-term operation under poor ventilation conditions underground.

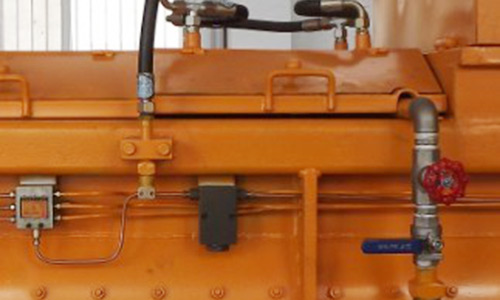

Water mist is used at the feeding area to reduce dust and effectively prevent dust from flying. The structure is simple and easy to maintain.
| Product model | Unit | HBMD-40/10-11 0SF | ||
|---|---|---|---|---|
| Maximum theoretical displacement | m ³/h40 | MPa | 10 | |
| Pumpable concrete specifications | Slump | cm | 8-23, most suitable 12-20 | Aggregate particle size | mm | Crushed stone ≤ 30 |
| mm | φ 180X1200 | |||
| hopper | volume | L | 300 | |
| >Ground clearance | mm | 800 | ||
| Distribution valve form | S pipe valve | |||
| Fuel tank capacity | L | 450 | ||
| Electric motor | Model | > & Nbsp; | YBK2-315S-4 | |
| Power | kW | 110 (Explosion proof) | Conveyor diameter | mm | φ 125 |
| Conveyor pipe cleaning method | bspCompressed air or high-pressure water washing | |||
| Feeding machine | Feeding machine width | mm | 650 | |
| Maximum conveying speed | m/s | 1.4 | ||
| Minimum feeding height | mm500 | |||
| Blender | Maximum continuous production rate | m ³/h | 40 | |
