Continuous work, high filling efficiency
Low equipment investment cost
Effectively solve the problem of ground subsidence caused by mining

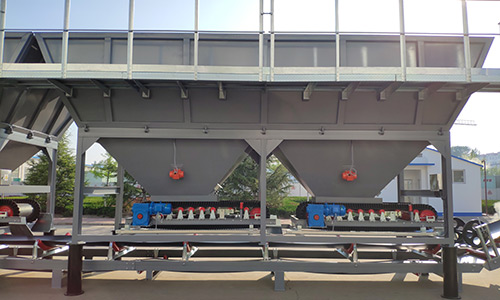

Large capacity (15m3), modular combination; Obtained the national manufacturing license for measuring instruments, with high measurement accuracy; Optional mechanical arch breaking; Optional vibrating screen to filter out oversized aggregates.

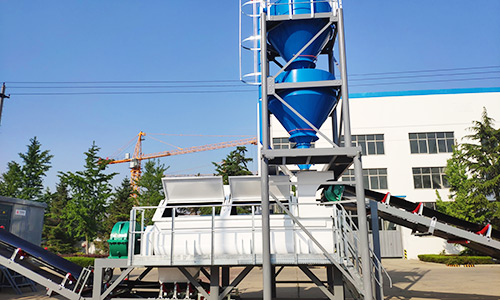

Adopting patented technology of reducing scale and direct falling cement supply, with high measurement accuracy
The entire process is in a fully sealed state, with no pollution or waste

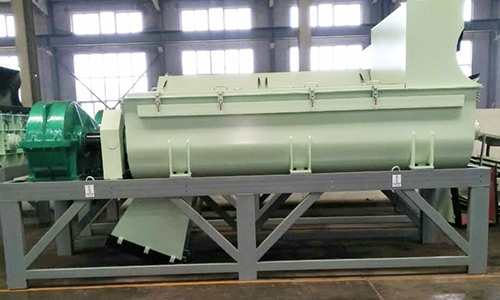

Extended mixing drum, high-speed mixing, uniform and efficient; The mixing blades and arms ensure the production of over 200000 tons of finished materials; Electric concentrated oil pump centralized lubrication; Narrow V-belt transmission with overload protection function; By adding reverse blades, it is possible to mix in series in two stages, ensuring uniformity and high efficiency.

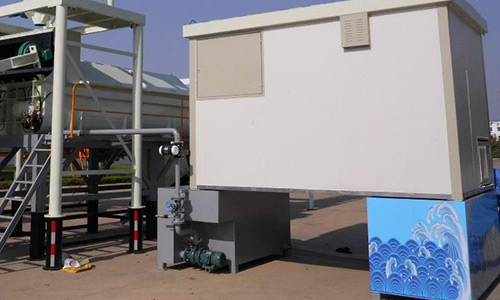

Intelligent electromagnetic flowmeter+frequency conversion speed regulation technology, accurate measurement, intuitive display& nbsp;
Can be remotely controlled and adjusted.

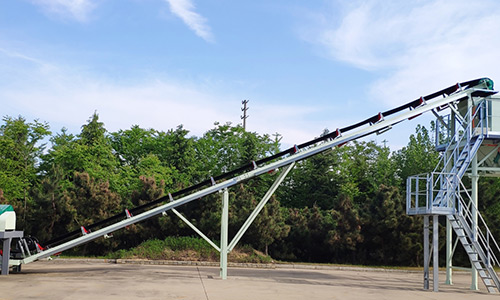

The belt adopts seamless vulcanized joint circular tape, which is reliable in quality and has a long service life
Adopting a heavy hammer polyurethane cleaner and equipped with a secondary scraping device for minimal residue
Adopting electric drum drive, suitable for harsh on-site environments
The main electrical components are made of international brands, which are reliable and have a long service life; Mitsubishi Programmable Logic Controller (PLC) from Japan does not experience crashes like a computer; LCD touch screen, can be operated without professional computer knowledge; Equipped with a shortage alarm function to ensure smooth production; It has a one click productivity adjustment function, making it easy to choose a reasonable productivity.
Model | LWBZ500-D (4 buckets+1 bin) | |
---|---|---|
Productivity (t/h) | 500Aggregate bucket volume (m ³) | 4 × 15|
Measurement method | Electronic measurement | |
Speed regulation method | Variable frequency speed regulation | Aggregate particle size | ≤ 50mm | Control method | Console centralized control & nbsp; Manual/Automatic | Measurement accuracy | Aggregate | ± 2% (electronic) |
Powder | ± 1% (electronic) | |
Water | ± 1% (electronic) | |
Power | 380V/50Hz||
121 | ||
Dimensions L × W × H (m) | 28 × 15 × 19.4 |
