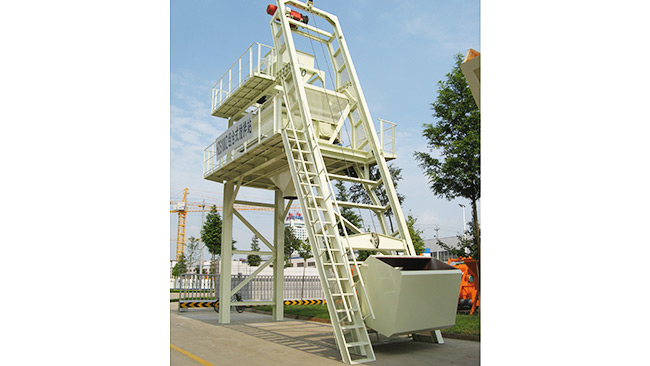

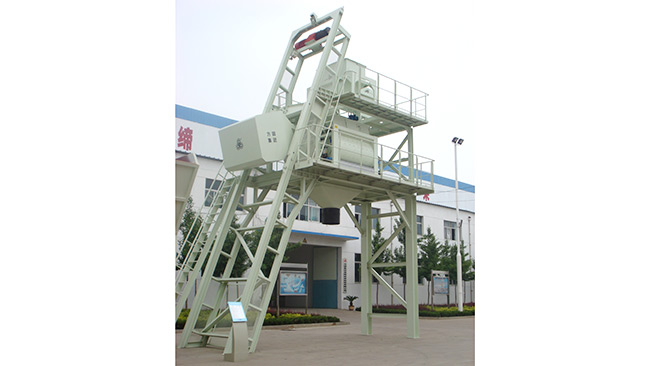

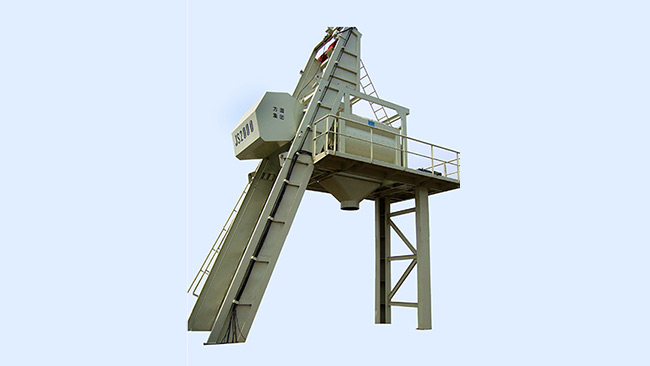

The JS2000 series concrete mixer is a double horizontal shaft forced mixer that can mix dry concrete, plastic concrete, flowable concrete, lightweight aggregate concrete, and various mortars. It is widely used!

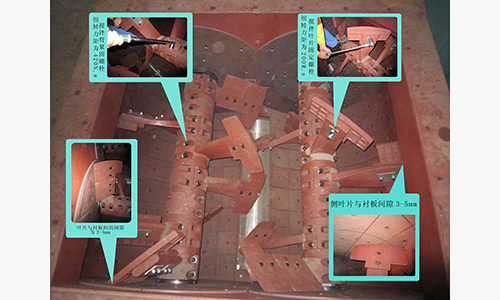

Standardized assembly process, strictly control the gap between the mixing blade and the arc liner plate within 5mm!
The unloading mechanism is equipped with three proximity switches to control the opening and closing status of the unloading door!

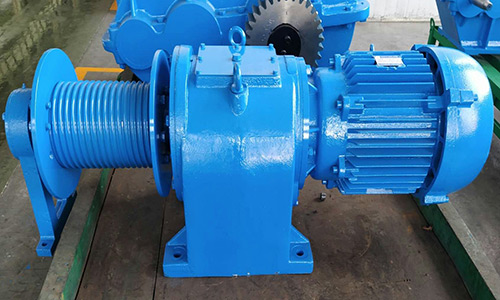

The wire rope drum adopts a folded line rope groove drum, greatly improving the service life of the wire rope.

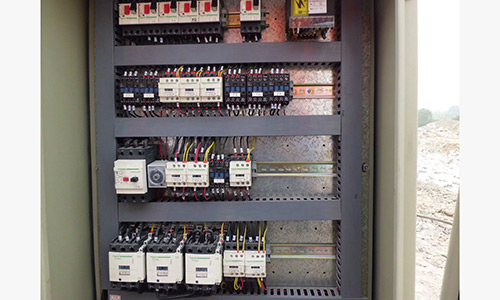

Equipped with short-circuit protection, overload protection, and phase failure protection, it is safe and reliable!

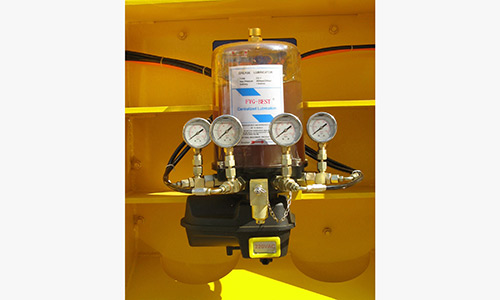

Adopting advanced centralized grease lubrication system to lubricate four independent working points!

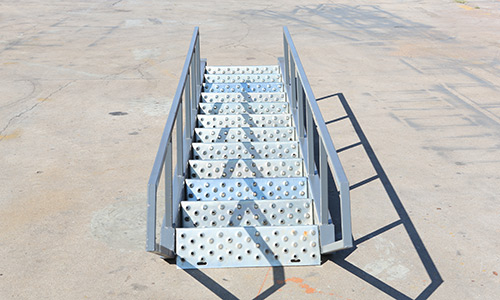

Anti slip climbing ladder and walking platform with humanized design, reducing safety hazards!
| Project | Unit | Parameters | Feed capacity | L | 3200 | Discharge capacity | L2000 | tr>Theoretical productivity | m ³/h | ≤ 100 |
|---|---|---|
| Whole machine power | kW | 114.5 | Maximum particle size of aggregate (pebble/gravel) | mm | 120/100 |
| Mixing blade speed | r/min | 23.7 |
| Number of mixing arms | 2 × 8 | |
| Mixing motor power | kW | 2 × 37 |
| Hoisting motor power | kW | 30 |
| Wire rope length | m | 24.5 |
| Pump motor power | kW | 7.5 |
| Hopper lifting speed | m/s | 0.5 |
| Discharge height | m | 3.8 meters | /tr>
| Overall dimensions of the machine (length x width x height) | mm | 10000 x 6500 x 10650 |
