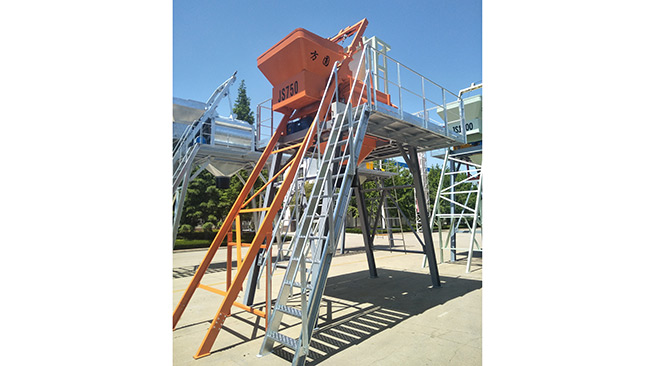

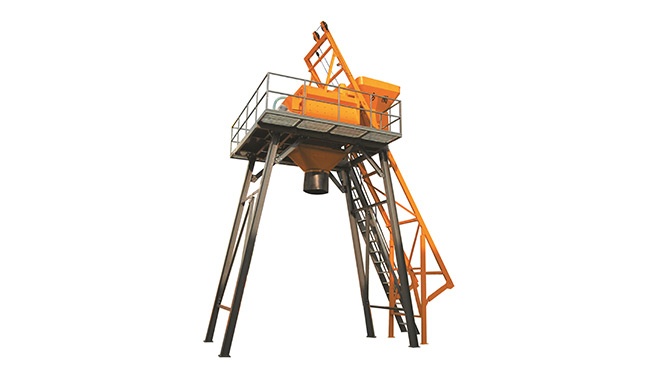

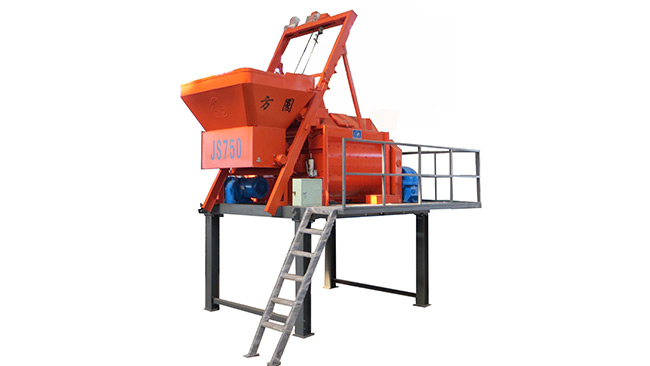

The JS750 series concrete mixer is a double horizontal shaft forced mixer that can mix dry concrete, plastic concrete, flowable concrete, lightweight aggregate concrete, and various mortars. It is widely used!

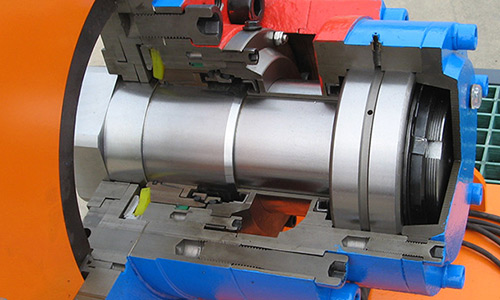

Adopting four shaft end seals and special equipment for seamless installation, to prevent leakage of slurry at the shaft end!

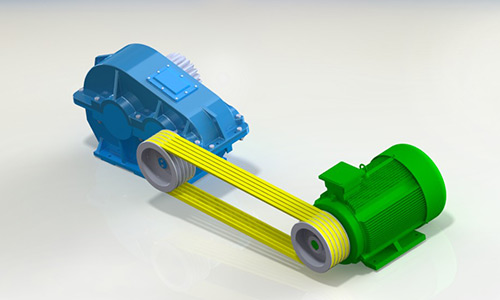

The reducer is independently designed and developed, with strong overload resistance and smooth transmission.

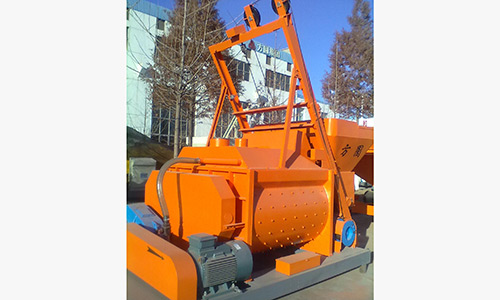

The upper limit adopts dual limit, which respectively limit and protect the lifting of the hopper!

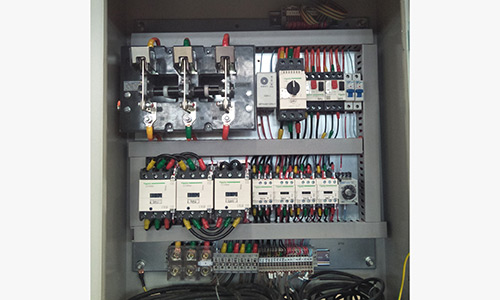

Equipped with short-circuit protection, overload protection, and phase failure protection, it is safe and reliable!

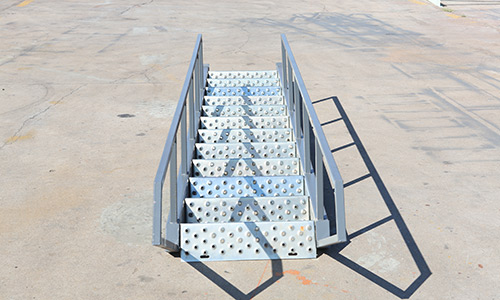

Anti slip climbing ladder and walking platform with humanized design, reducing safety hazards!
Each device undergoes a load test before leaving the factory to ensure that we provide users with the highest quality and most reliable products!
| Project | Unit | JS750-1.5 meters | JS750-2.7 meters | JS750-3.8 meters |
|---|---|---|---|---|
| Feed capacity | L | 1200 | >1200 | |
| Discharge capacity | L | 750 | 750 | |
| Theoretical productivity | m ³/h | ≤ 35 | ≤ 35 | |
| Whole machine power | kW | 41.6 | 41.641.6 | |
| Maximum particle size of aggregate (pebble/gravel) | mm | 80/60 | 80/60 | 80/60 |
| Mixing blade speed | r/min | 30.5 | 30.5 | |
| Number of mixing blades | 2 × 8 | 2 × 8 | ||
| Mixing motor power | kW | 30 | 30 | 30 |
| Hoisting motor power | kW | 7.5 | 7.5 | |
| Wire rope length | M | 22 meters | 28 meters | d>|
| Pump electric motor power | kW | 1.1 | 1.1 | 1.1 |
| Hopper lifting speed | m/min | 19.2 | 19.2 | |
| Overall dimensions of the machine (length x width x height) | mm | 6170×2900×6380 | 7780×3580×8450 | 8410×3580×9550 & nbsp; |
