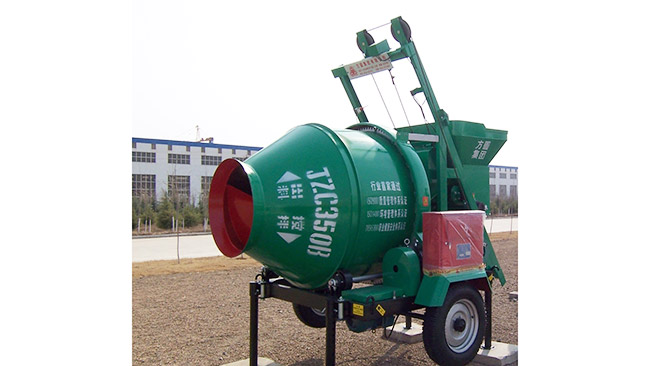

The JZC350 concrete mixer is a self falling double cone reverse discharge mixer, which has the characteristics of high production efficiency, good mixing quality, light weight, and easy movement.

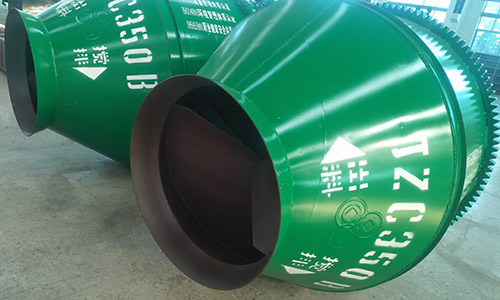

Double cone reverse discharge, mixing drum forward transmission mixing, reverse discharge, light weight, good mixing uniformity.

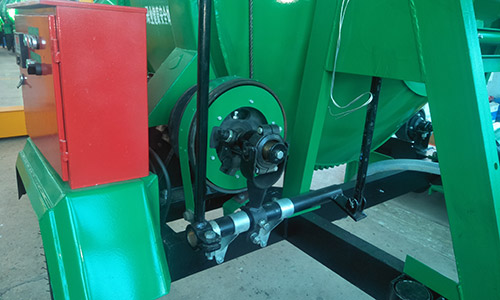

Loading, unloading, and mixing are completed by a set of transmission mechanisms, saving operating costs.

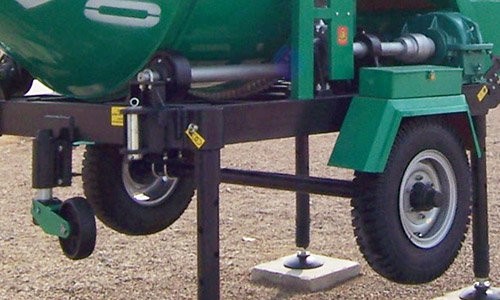

Equipped with a wheeled towing device, the transition does not require disassembly and assembly, making it easy to move.

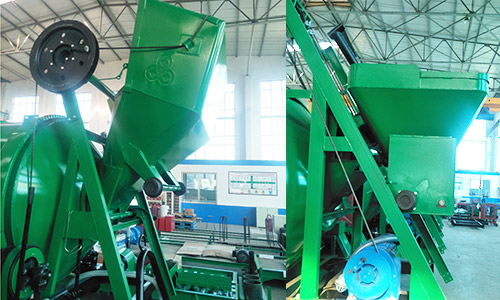

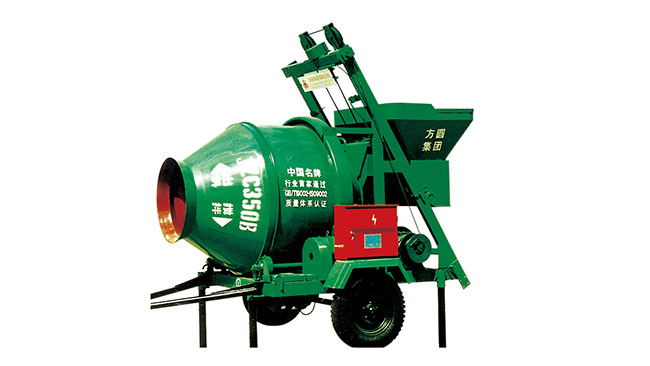

JZC350 is equipped with a tipping hopper, while JZC350B is equipped with a bucket lifting hopper, making it convenient for users to choose flexibly.
| Serial number | project | parameter |
|---|---|---|
| one | Feed capacity L | five hundred and sixty |
| two | Discharge capacity L | three hundred and fifty |
| three | Productivity m ³/h | ten |
| four | Mixing drum speed r/min | fourteen |
| five | Maximum particle size of aggregate mm | sixty |
| six | Discharge height mm | one thousand two hundred and fifty |
| seven | Tire specifications | 6.00-16 |
| eight | Maximum towing speed km/h | twenty |
| nine | Water supply error | 2% |
