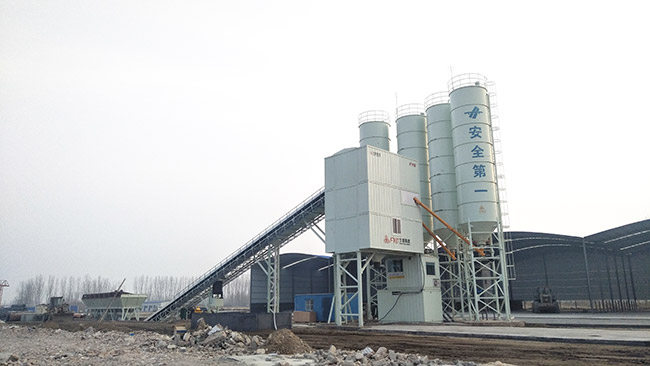

★ Box type structure, quick installation and debugging, no additional cost for transition.
★ Anti stick shaft design reduces cleaning workload.
★ Environmentally friendly design, which can achieve complete recycling, separation and reuse of residual concrete.

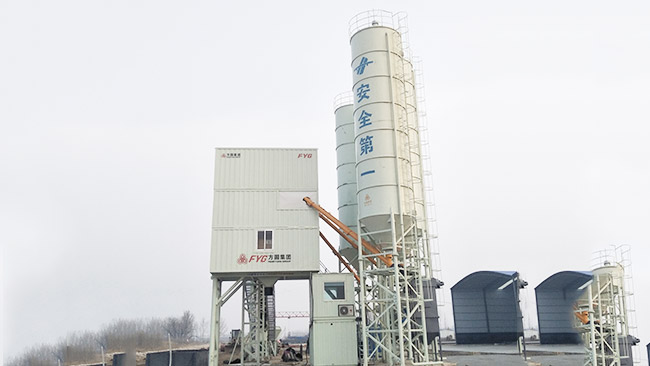

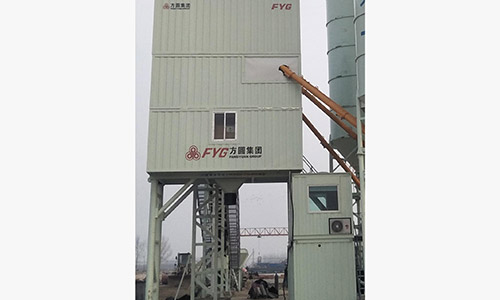

The main container structure allows for quick installation and disassembly;
Closed structure, environmentally friendly and pollution-free;
No secondary relocation expenses.

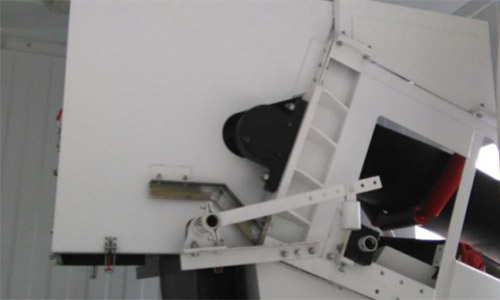

Proactive dust collection, large dust collection area, environmentally friendly and pollution-free;
Polyurethane cleaner with long belt service life;
Automatically adjust belt deviation.
Double door structure, smooth feeding, high utilization rate of bucket capacity.
Self regulating polyurethane head cleaner with minimal belt wear.
Opening adjustment device, anti card door, anti splash device, high measurement accuracy, safety and reliability.

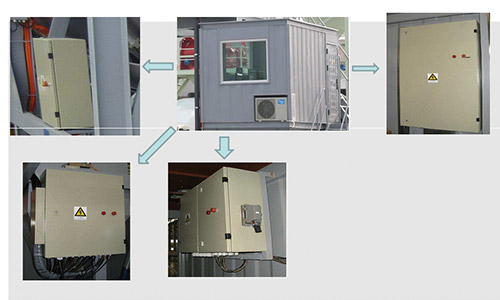

Split type control system, convenient for troubleshooting and maintenance.
Heavy duty connector wiring, plug and play on site.
The control system is easy to operate, stable and reliable, with functions such as scale replenishment, scale deduction, continuous production, intelligence, and central control.
The additive pump adopts stainless steel magnetic drive pump, which is corrosion-resistant.
The admixture supply adopts a diversion device to meet the requirements of small range and precise measurement.

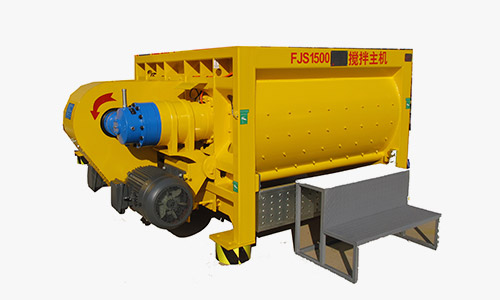

Large capacity, dual motor drive, capable of overloading up to 10%;
Anti stick shaft technology reduces the frequency and workload of cleaning the host;
Hydraulic unloading, powerful and low failure rate, quick installation and disassembly of multiple shaft end seals, and wear resistance.
| project | Company | parameter | |
|---|---|---|---|

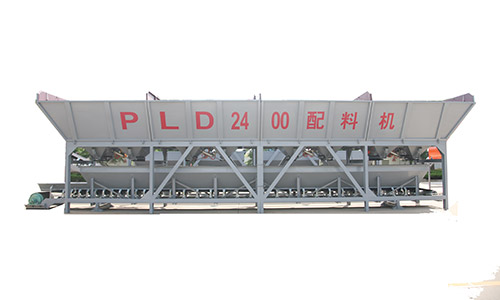

| Batching machine model |
|
PLD2400Q-Ⅳ | |
| Storage hopper capacity of batching machine | m³ | 4×15 | |
| Maximum weighing value of aggregate scale | kg | three thousand | |
| Maximum weighing value of cement scale | kg | one thousand | |
| Maximum weighing value of fly ash scale | kg | three hundred | |
| Maximum weighing value of water scale | kg | four hundred | |
| Maximum weighing value of liquid additive scale | kg | forty | |
| Host unloading height | m | three point eight | |
| Whole machine quality | t | forty | |
| Dimensions (length x width x height) | m | 20×18×19.6 | |
| Loading method |
|
Belt type | |
| Measurement accuracy | aggregate | % | ±2 |
| cement | % | ±1 | |
| Fly ash | % | ±1 | |
| water | % | ±1 | |
| Liquid additive | % | ±1 | |
| Note: | |||
| 1. Cement silo and screw conveyor are optional components, and their capacity and size can be matched according to actual needs. | |||
| 2. The external dimensions and weight are for reference only and will be determined based on the actual configuration. | |||
